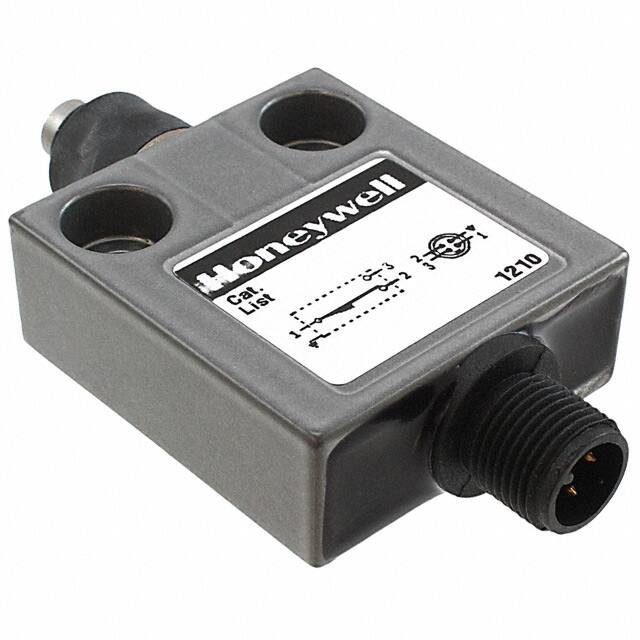

Specifications
- Çalışma Sıcaklığı
- 0°C~105°C
- Actuator Type
- Round (Pin Plunger)
- Reach Svhc
- No SVHC
- Genişlik
- 16mm
- Montaj
- Brackets, Chassis Mount, Screw
- Akım Değeri
- 3A
- Ratings
- Dust Tight, IP66, IP68, Water Resistant
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Ingress Protection
- IP66 - Dust Tight, Water Resistant
- Housing Material
- Zinc
- Release Force
- 450gf
- Operating Force
- 2300gf
- Voltage Rated Ac
- 250V
- Uzunluk
- 40.01mm
- Depth
- 16mm
- Contact Currentacmax
- 5A
- Fabrika Tedarik Süresi
- 5 Weeks
- Max Voltage Rating Ac
- 250V
- Number Of Poles
- 1
- Pretravel
- 0.071 (1.8mm)
- Switch Function
- On-Mom
- Overtravel
- 0.118 (3.0mm)
- Yayın Yılı
- 2001
- Contact Plating
- Silver
- Ambalaj
- Bulk
- Current Rating Amps
- 3A AC
- Circuit
- SPDT
- ECCN Kodu
- EAR99
- Pin Sayısı
- 4
- Terminal Stili
- Connector
- Parça Durumu
- Active
- Montaj Tipi
- Chassis Mount
- HTS Kodu
- 8536.50.70.00
- Onay Kuruluşu
- CE, CSA, IEC, UL
- Pozisyon Sayısı
- 2
- Kurşunsuz Kodu
- yes
- RoHS Durumu
- RoHS Compliant
- Orientation
- Straight
- Mechanical Life
- 10,000,000 Cycles
- Operating Position
- 0.980 (24.9mm)
