Volume pricing
- 1+ pcs$622.79
- 10+ pcs$587.53
- 100+ pcs$554.28
- 500+ pcs$522.90
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

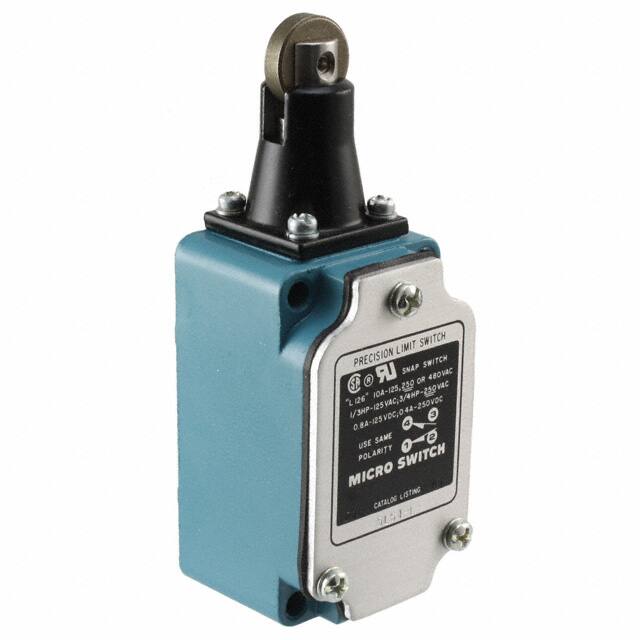

Specifications
- Operating Force
- 3175gf
- Depth
- 68.6mm
- Actuator Type
- Roller Plunger
- Body Height
- 68.58mm
- Kurşunsuz Kodu
- yes
- Yayın Yılı
- 2015
- Ambalaj
- Bulk
- Uzunluk
- 39.9mm
- Differential Travel
- 0.020 (0.5mm)
- Fabrika Tedarik Süresi
- 20 Weeks
- Contact Voltageacmax
- 480V
- Montaj
- Chassis Mount, Screw
- Parça Durumu
- Active
- RoHS Durumu
- RoHS Compliant
- Pretravelmax
- 1.65 mm
- Switch Function
- On-Mom
- Genişlik
- 28.7mm
- Housing Material
- Zinc
- Actuator Travel
- 7.21 mm
- Overtravel
- 0.219 (5.6mm)
- Ratings
- Dust Tight, IP67, Waterproof
- Current Rating Amps
- 10A AC 800mA DC
- Sealing
- CORROSION PROOF
- HTS Kodu
- 8536.50.70.00
- Operating Position
- 1.730 (43.9mm)
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Release Force
- 907gf
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Seri
- LS
- Terminal Stili
- Screw Terminal
- Body Breadth
- 35.05 mm
- Pretravel
- 0.065 (1.65mm)
- Contact Dc Max Rating R Load
- .8A@125VDC
- Max Current Rating
- 10A
- Contact Ac Max Rating R Load
- 10A@480VAC
- ECCN Kodu
- EAR99
- Contact Currentdcmax
- 0.8A
- Terminal
- Conduit
- Montaj Tipi
- Chassis Mount
- Voltage Rated Ac
- 125V
