Volume pricing
- 1+ pcs$63.09
- 10+ pcs$59.52
- 100+ pcs$56.15
- 500+ pcs$52.97
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

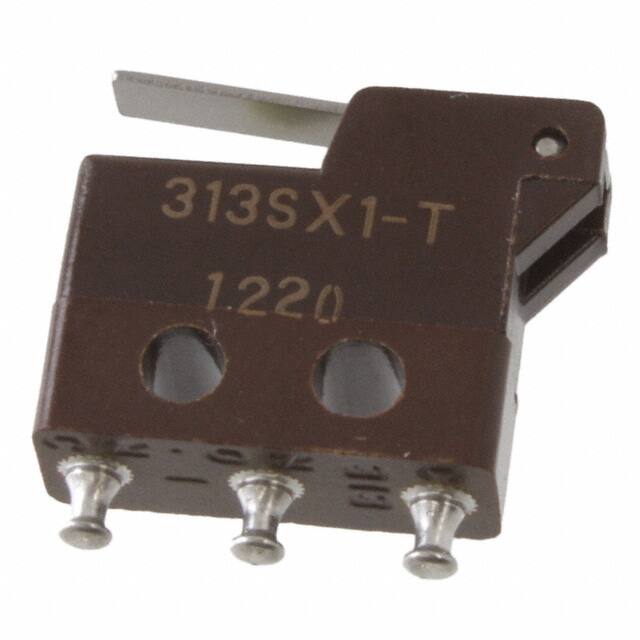

Specifications
- Operating Force
- 50gf
- Mechanical Life
- 10,000,000 Cycles
- Voltage Rated Dc
- 30V
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Max Current Rating
- 1A
- Montaj
- Chassis Mount, Panel, Screw, Solder
- Ambalaj
- Bulk
- Weight
- 1.36g
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Current Rating
- 1A
- Release Force
- 9.177gf
- Orientation
- Straight
- RoHS Durumu
- RoHS Compliant
- Yayın Yılı
- 2007
- Parça Durumu
- Active
- Voltage Rated Ac
- 125V
- Çalışma Sıcaklığı
- -55°C~125°C
- Montaj Tipi
- Chassis Mount
- Housing Material
- Phenolic
- Depth
- 5.08mm
- ECCN Kodu
- EAR99
- Terminal
- Turret
- Operating Position
- 0.332 (8.43mm)
- Terminal Stili
- Solder Turret
- Pretravel
- 0.065 (1.65mm)
- Switch Function
- On-Mom
- Contact Materials
- Gold
- Fabrika Tedarik Süresi
- 9 Weeks
- Seri
- SX
- Differential Travel
- 0.020 (0.5mm)
- Current Rating Amps
- 1A AC/DC
- Circuit
- SPDT
- Reach Svhc
- Unknown
- Max Voltage Rating Dc
- 30V
- Actuator Type
- Lever, Straight
- Akım Değeri
- 1A
- Overtravel
- 0.014 (0.35mm)
- Uzunluk
- 14.73mm
