Volume pricing
- 1+ pcs$17.70
- 10+ pcs$16.69
- 100+ pcs$15.75
- 500+ pcs$14.86
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

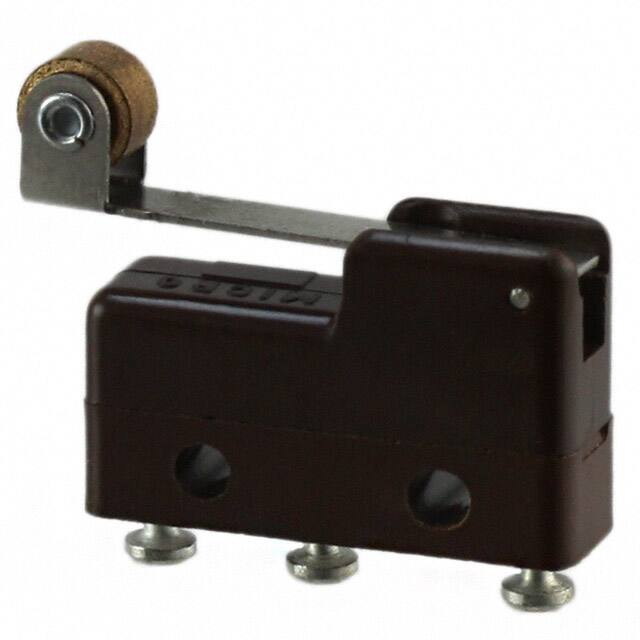

Specifications
- Çalışma Sıcaklığı
- -55°C~125°C
- Pretravel
- 0.085 (2.16mm)
- Number Of Poles
- 1
- Onay Kuruluşu
- CE, CSA, UL
- Actuator Length
- 638mm
- Release Force
- 7.138gf
- Weight
- 272g
- RoHS Durumu
- RoHS Compliant
- Seri
- SM
- Circuit
- SPDT
- Contact Currentdcmax
- 1A
- Fabrika Tedarik Süresi
- 9 Weeks
- Yükseklik
- 16.9mm
- Montaj Tipi
- Chassis Mount
- Switch Function
- On-Mom
- Current Rating Amps
- 1A AC/DC
- Reach Svhc
- No SVHC
- Terminal Stili
- Solder Turret
- Yayın Yılı
- 2007
- Housing Material
- Phenolic
- Contact Materials
- Gold, Silver
- Operating Force
- 40gf
- Max Current Rating
- 1A
- ECCN Kodu
- EAR99
- Overtravel
- 0.018 (0.45mm)
- Contact Currentacmax
- 1A
- Orientation
- Straight
- Voltage Rated Dc
- 30V
- Kılıf / Paket
- 125
- Differential Travel
- 0.020 (0.5mm)
- Pozisyon Sayısı
- 2
- Ambalaj
- Bulk
- Voltage Rated Ac
- 125V
- HTS Kodu
- 8536.50.70.00
- Montaj
- Chassis Mount, Screw, Solder
- Contact Current Rating
- 1A
- Operating Position
- 0.560 (14.2mm)
- Mechanical Life
- 10,000,000 Cycles
- Depth
- 6.4mm
- Uzunluk
- 23.45mm
