Volume pricing
- 1+ pcs$19.32
- 10+ pcs$18.23
- 100+ pcs$17.20
- 500+ pcs$16.22
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Operating Position
- 0.460 (11.7mm)
- Montaj
- Chassis Mount, Screw, Solder
- Akım Değeri
- 5A
- Parça Durumu
- Active
- Pretravelmax
- 2.16 mm
- Uzunluk
- 21.06mm
- Depth
- 6.35mm
- Mechanical Life
- 10,000,000 Cycles
- Kurşunsuz Kodu
- yes

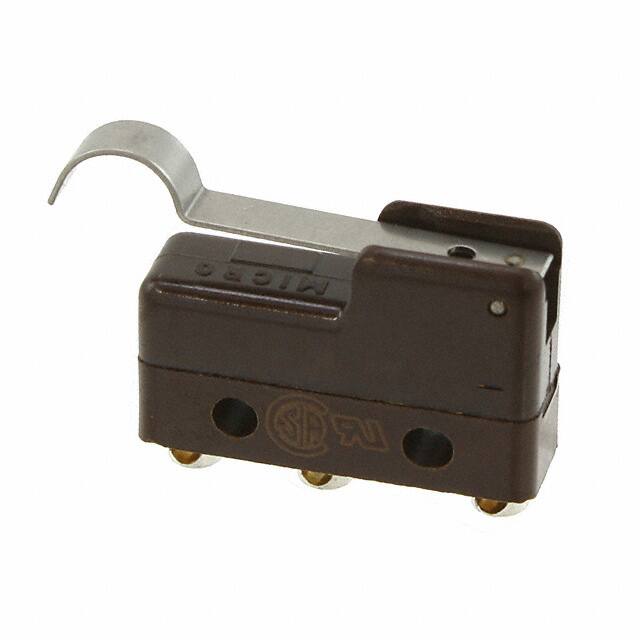

- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Actuator Type
- Lever, Simulated Roller
- Terminal
- Solder
- ECCN Kodu
- EAR99
- Max Current Rating
- 5A
- REACH Uyumluluk Kodu
- unknown
- Differential Travel
- 0.020 (0.5mm)
- Orientation
- Straight
- Contact Currentacmax
- 5A
- Voltage Rated Dc
- 30V
- Overtravel
- 0.018 (0.45mm)
- Ambalaj
- Bulk
- HTS Kodu
- 8536.50.70.00
- Voltage Rated Ac
- 250V
- Terminal Stili
- Solder Lug
- Yayın Yılı
- 1995
- Current Rating Amps
- 5A AC/DC
- Montaj Tipi
- Chassis Mount
- Switch Function
- On-Mom
- Contact Ac Max Rating R Load
- 5A@250VAC
- Contact Materials
- Silver
- Operating Force
- 40gf
- Contact Dc Max Rating R Load
- 5A@30VDC
- Housing Material
- Phenolic
- Pretravel
- 0.085 (2.16mm)
- Çalışma Sıcaklığı
- -55°C~125°C
- Weight
- 272g
- Body Height
- 9.04mm
- Actuator Length
- 638mm
- Release Force
- 7.138gf
