Volume pricing
- 1+ pcs$77.97
- 10+ pcs$73.56
- 100+ pcs$69.39
- 500+ pcs$65.47
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

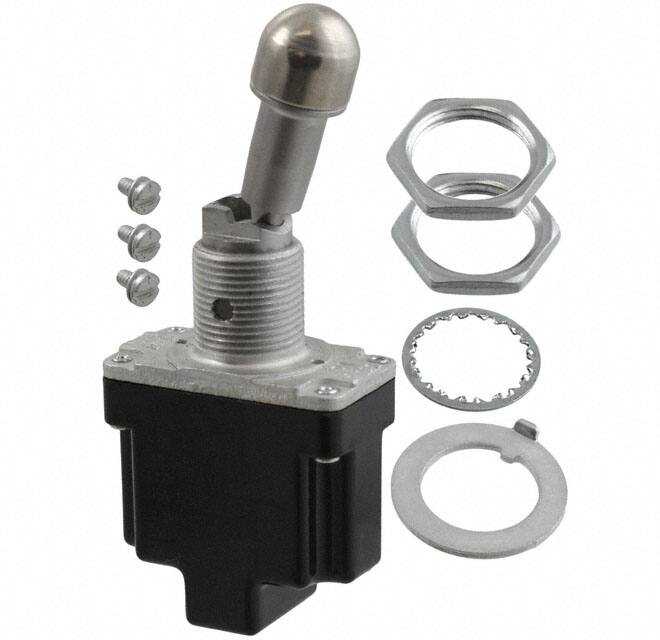

Specifications
- Voltage Rated Dc
- 250V
- Akım Değeri
- 15A
- RoHS Durumu
- RoHS Compliant
- Contact Materials
- Cadmium, Silver
- Contact Ac Max Power Rating R Load
- 1HP@250VAC
- Actuator Type
- Locking Lever
- Current Rating Amps
- 15A AC
- Terminal
- Screw
- Voltage Rated Ac
- 125V
- Illumination Type
- Illuminated, Non-Illuminated
- Actuator Length
- 26.67mm
- Yayın Yılı
- 2001
- Panel Cutout Dimensions
- Circular - 12.40mm Dia
- Seri
- TL
- Contact Dc Max Rating R Load
- 20A@28VDC
- Ambalaj
- Bulk
- HTS Kodu
- 8536.50.90.65
- Terminal Stili
- Screw Terminal
- Bushing Length
- 0.47 inch
- Contact Current Rating
- 20A
- Parça Durumu
- Active
- Sealing
- DUST PROOF
- Orientation
- Straight
- Actuator Material
- Nickel Plated
- Bushing Thread
- 15/32-32
- Max Voltage Rating Dc
- 250V
- Çalışma Sıcaklığı
- -65°C~71°C
- Onay Kuruluşu
- CE, CSA, UL
- Switch Function
- On-Off-On
- Montaj
- Bushing
- Montaj Tipi
- Panel Mount
- Body Height
- 29.46mm
- Contact Ac Max Rating R Load
- 15A@125VAC
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- ECCN Kodu
- EAR99
- Illumination
- Non-Illuminated
- Contact Plating
- Cadmium, Silver
- Ingress Protection
- Environment Sealed
- Additional Feature
- LOCKED OUT OF KEYWAY SIDE
- Body Breadth
- 15.75 mm
