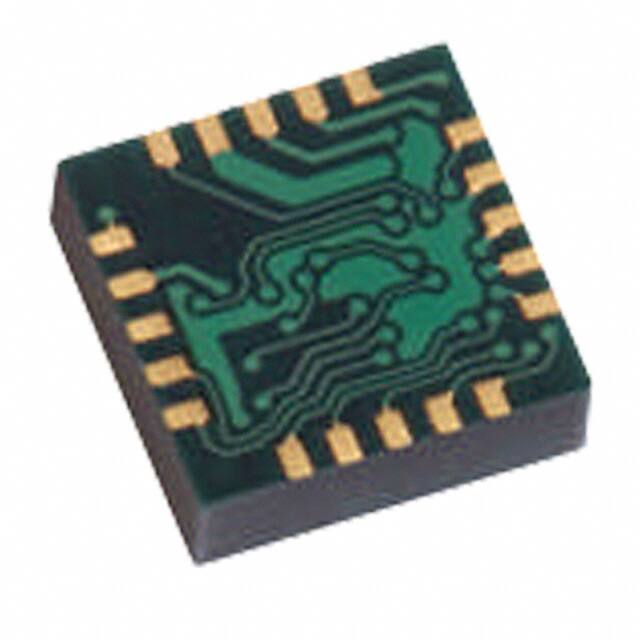

HMC5843-TR

Specifications

Current Supply Max

80μA

Yüzey Montaj

YES

Linearity

0.1 %

Termination Type

SOLDER

Yayın Yılı

2009

Supply Voltagemax

3.3 V

Ambalaj

Cut Tape (CT)

Magnetic Field Rangemin

0.07 mT

Risk Rank

5.75

Magnetic Field Rangemax

0.4 mT

Package Description

LCC20,.16SQ,20

Part Life Cycle Code

Active

Pin Sayısı

20

RoHS Durumu

RoHS Compliant

Output Interface Type

I2C INTERFACE

Kılıf / Paket

20-LCC

Sensing Method

Magnetoresistive

Axis

X, Y, Z

Number Of Axes

1

Ihs Manufacturer

HONEYWELL MICROELECTRONICS AND PRECISION SENSORS

Sensing Range

±0.6mT

Tedarikçi Cihaz Paketi

20-LCC

Çıkış Tipi

I2C

Montaj Tipi

Surface Mount

Operating Temperaturemin

-30 °C

Body Length Or Diameter

4 mm

Besleme Gerilimi

2.5V~3.3V

Özellikler

Sleep Mode

Nem Hassasiyeti (MSL)

3 (168 Hours)

REACH Uyumluluk Kodu

unknown

Mounting Feature

SURFACE MOUNT

Çalışma Sıcaklığı

-30°C~85°C TA

Maks. Çalışma Sıcaklığı

85°C

Power Supplies

1.8,2.5/3.3 V

Üretici Parça No

HMC5843-TR

Body Height

1.33 mm

Operating Temperaturemax

85 °C

Sensorstransducers Type

MAGNETIC FIELD SENSOR,MAGNETORESISTIVE

Package Shapestyle

SQUARE

Number Of Terminals

20
