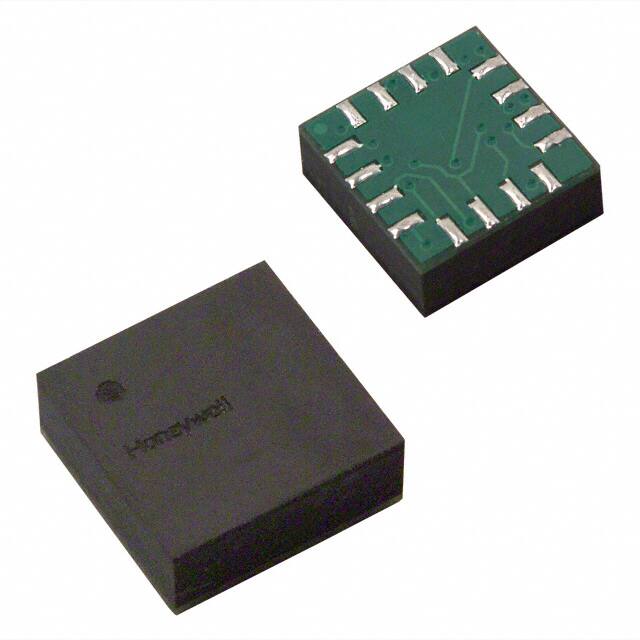

HMC1053

Specifications

RoHS Durumu

Non-RoHS Compliant

Besleme Gerilimi

1.8V~20V

Çalışma Sıcaklığı

-40°C~125°C TA

Operating Supply Current

2.4A

Terminal Kaplaması

Gold (Au)

Part Life Cycle Code

Active

Operating Currentmax

10 mA

Sensorstransducers Type

MAGNETIC FIELD SENSOR,MAGNETORESISTIVE

Nem Hassasiyeti (MSL)

3 (168 Hours)

JESD-609 Kodu

e4

Yayın Yılı

2009

Min Supply Voltage

1.8 V

Maks. Çalışma Sıcaklığı

125 °C

Max Supply Voltage

20 V

Kurşunsuz Kodu

no

Sensing Range

±0.6mT

Pin Sayısı

16

Gain

34dB

Supply Voltagemin

1.8 V

Frekans

9GHz~14GHz

Body Length Or Diameter

7.36 mm

Ihs Manufacturer

HONEYWELL SENSING AND CONTROL

Operating Temperaturemax

125 °C

Sensing Method

Magnetoresistive

Operating Temperaturemin

-40 °C

Samacsys Description

Magnetoresistive Sensor X, Y, Z Axis 16-LCC (7.37x7.37),Output Type Wheatstone Bridge, Sensing Rangetu00b10.6mT, Voltage - Supplyt1.8 V ~ 20 V,16-LCC

Additional Feature

RESOLUTION IS 120U GAUSS

Yüzey Montaj

YES

Uzunluk

7.4mm

P1db

36.5dBm

Mounting Feature

SURFACE MOUNT

Yükseklik

2.5mm

Risk Rank

1.5

Magnetic Field Rangemax

0.6 mT

Kılıf / Paket

16-LCC

Number Of Channels

1

Direnç

15Ohm

Bandwidth

5 MHz

Body Breadth

7.36 mm

REACH Uyumluluk Kodu

compliant
