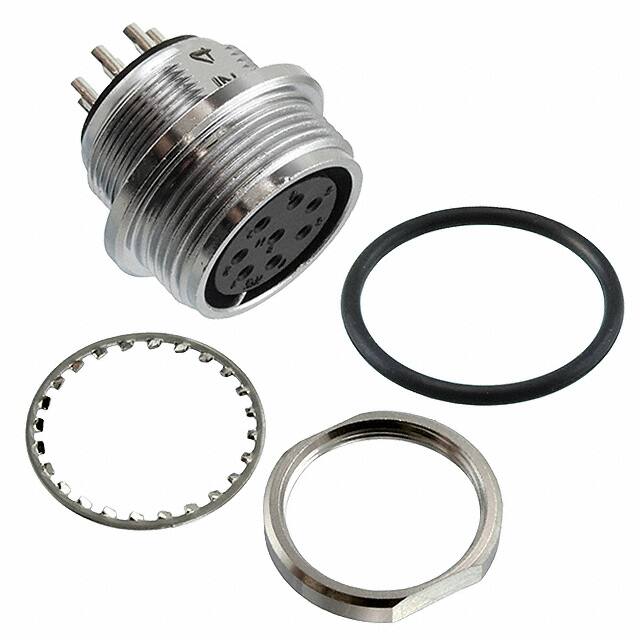

RM15WTRZ-8S(71)

Specifications

Reach Svhc

No SVHC

Backshell Type

SOLID

Pozisyon Sayısı

8

Mixed Contacts

NO

ECCN Kodu

EAR99

Terminal

Solder Cup

Filter Feature

NO

Contact Finish Thickness Mating

196.9μin 5.00μm

Ratings

Dust Tight, IP67, Waterproof

Connector Type

Receptacle, Female Sockets

Gender

Receptacle

Orientation

Keyed

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Voltage Rated Ac

500V

REACH Uyumluluk Kodu

unknown

Insert Material

Diallyl Phthalate (DAP)

Mil Conformance

NO

Shell Finish

Chrome

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

8

Montaj Tipi

Panel Mount

Material Flammability Rating

UL94 V-0

Montaj

Panel

Kurşunsuz Kodu

yes

Contact Finish Mating

Silver

Contact Materials

Copper Alloy

Empty Shell

NO

JESD-609 Kodu

e4

Akım Değeri

5A

Shell Material

Zinc Alloy

Contact Resistance

4mOhm

Ingress Protection

IP67/68 - Dust Tight, Waterproof

Body Material

Brass

RoHS Durumu

RoHS Compliant

Contact Gender

Female

Shell Size Insert

15

Parça Durumu

Active

Seri

RM-W

Nominal Gerilim

500VAC 700VDC
