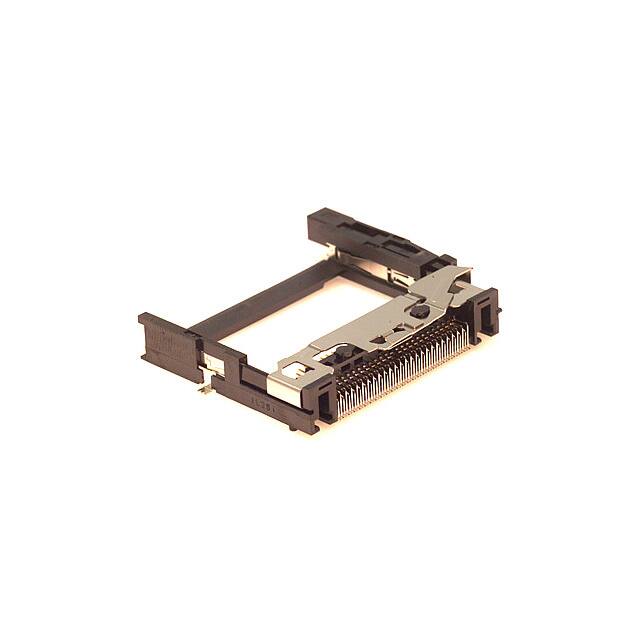

MI21A-50PD-SF-EJL

Specifications

Kurşunsuz

Contains Lead

Reference Standard

UL

Mating Information

NO

Ul Flammability Code

94V-0

Özellikler

Board Guide

Operating Temperature Max

85°C

Contact Materials

Brass

Yayın Yılı

2005

Number Of Conductors

ONE

Card Type

CompactFlash® - Type I, II

Operating Temperature Min

-55°C

Contact Finish

Gold

Contact Gender

MALE

Additional Feature

COMPATIBLE WITH PCMCIA/JEIDA

Montaj

Surface Mount

Montaj Tipi

Surface Mount, Right Angle

Insulation Materials

POLYPHENYLENE SULPHIDE

Body Breadth

0.341 inch

Pozisyon Sayısı

50

Body Length Or Diameter

1.984 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

1

Mil Conformance

NO

Contact Resistance

40mOhm

Kılıf / Paket

SMD/SMT

Pcb Contact Pattern

RECTANGULAR

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

RoHS Durumu

Non-RoHS Compliant

Housing Color

Black

Total Number Of Contacts

50

Mating Contact Pitch

0.05 inch

REACH Uyumluluk Kodu

unknown

Bodyshell Style

RECEPTACLE

Filter Feature

NO

Durability

10000 Cycles

Insulation Resistance

1000000000Ohm

Option

GENERAL PURPOSE

Insertion Removal Method

Push In, Push Out

Terminal Adımı

0.635mm
