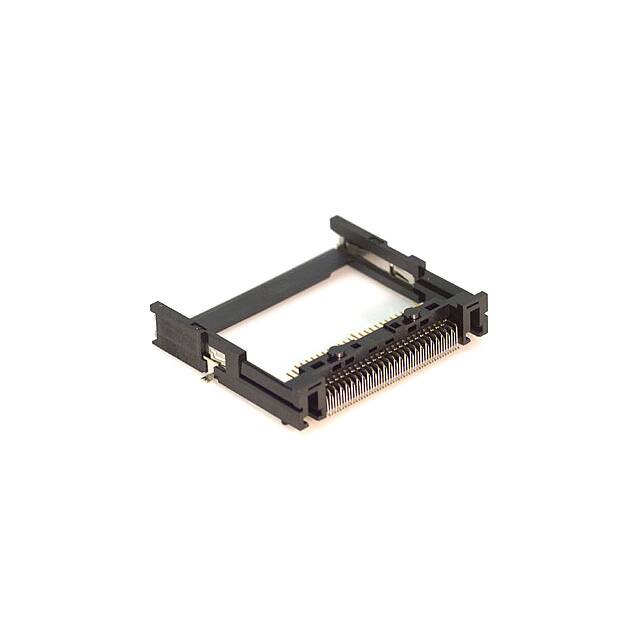

MI21A-50PD-SF

Specifications

Contact Style

SQ PIN-SKT

Number Of Ports

1

Iec Conformance

NO

Height Above Board

0.341 8.65mm

Body Depth

1.575 inch

ECCN Kodu

EAR99

Din Conformance

NO

Insertion Removal Method

Push In, Pull Out

Terminal Adımı

0.635mm

Connector Type

Connector

Contact Finish Thickness

3.94μin 0.10μm

Parça Durumu

Obsolete

Mounting Feature

Normal, Standard - Top

Ambalaj

Tray

Reliability

COMMERCIAL

Sıra Sayısı

2

Rated Current Signal

0.5A

Seri

MI21

Mating Contact Pitch

0.05 inch

Total Number Of Contacts

50

Housing Color

Black

Mixed Contacts

NO

RoHS Durumu

Non-RoHS Compliant

Insulation Resistance

1000000000Ohm

Option

GENERAL PURPOSE

Bodyshell Style

RECEPTACLE

Durability

10000 Cycles

Filter Feature

NO

REACH Uyumluluk Kodu

unknown

Body Breadth

0.341 inch

Body Length Or Diameter

1.886 inch

Pozisyon Sayısı

50

Insulation Materials

POLYPHENYLENE SULPHIDE

Montaj

Surface Mount

Montaj Tipi

Surface Mount, Right Angle

Additional Feature

COMPATIBLE WITH PCMCIA/JEIDA

Contact Gender

MALE

Contact Pattern

RECTANGULAR

Pcb Contact Pattern

RECTANGULAR

HTS Kodu

8536.69.40.40
