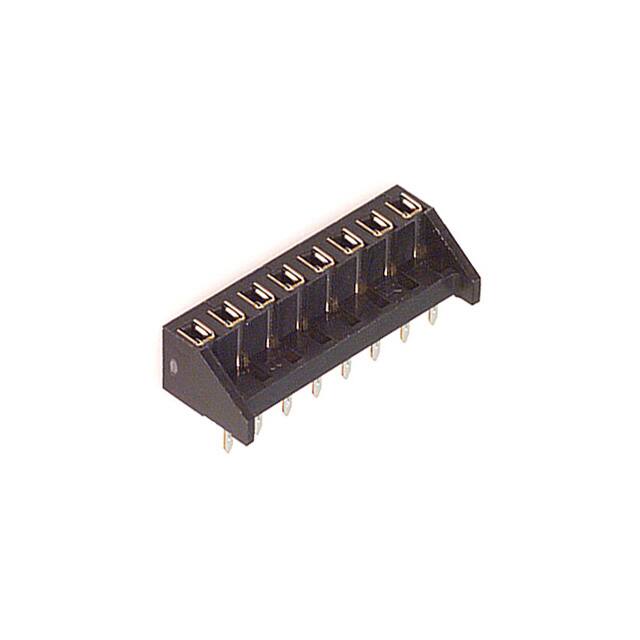

MDF7-8S-2.54DSA(55)

Specifications

Connector Type

Receptacle, Bottom Entry

Montaj

Through Hole

Montaj Tipi

Through Hole

Number Of Pcb Rows

1

Contact Finish Thickness Mating

78.7μin 2.00μm

Seri

MDF7

Terminal

Solder

Contact Finish Thickness Post

78.7μin 2.00μm

Ambalaj

Tray

Contact Finish Mating

Tin

Parça Durumu

Active

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Radyasyon Dayanımı

No

Filter Feature

NO

Contact Shape

Square

Number Of Conductors

ONE

Contact Type

Female Socket

Insulation Materials

Polyamide (PA), Nylon

Pozisyon Sayısı

8

Lead Pitch

2.54mm

Sıra Sayısı

1

Number Of Positions Loaded

All

Mil Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Contact Materials

Phosphor Bronze

Housing Material

Polyamide

JESD-609 Kodu

e3

Çalışma Sıcaklığı

-35°C~85°C

Insulation Height

0.197 5.00mm

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Black

Reference Standard

UL

Option

GENERAL PURPOSE

Nominal Gerilim

250VAC

Gender

Female

Ul Flammability Code

94V-0

Akım Değeri

3A

Material Flammability Rating

UL94 V-0
