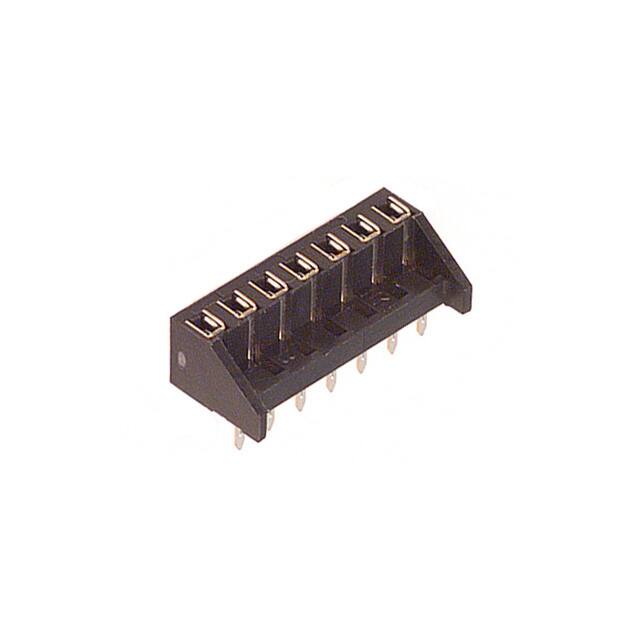

MDF7-7S-2.54DSA(55)

Specifications

Insulation Height

0.197 5.00mm

Mixed Contacts

NO

Housing Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Number Of Positions Loaded

All

Mil Conformance

NO

Fabrika Tedarik Süresi

12 Weeks

JESD-609 Kodu

e3

Contact Materials

Phosphor Bronze

REACH Uyumluluk Kodu

unknown

Housing Material

Plastic

Çalışma Sıcaklığı

-35°C~85°C

Kurşunsuz Kodu

yes

Pitch Mating

0.100 2.54mm

Rated Current Signal

3A

Fastening Type

Push-Pull

Din Conformance

NO

Reliability

COMMERCIAL

Contact Resistance

30mOhm

Iec Conformance

NO

Ul Flammability Code

94V-0

Nominal Gerilim

250VAC

Gender

Female

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Akım Değeri

3A

Contact Length Post

0.118 3.00mm

Pcb Contact Pattern

RECTANGULAR

Flammability Rating

UL94 V-0

Style

Board to Board

Contact Finish Mating

Tin

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Connector Type

Receptacle, Bottom Entry

Montaj

Through Hole

Montaj Tipi

Through Hole

Contact Finish Thickness Mating

78.7μin 2.00μm

Number Of Pcb Rows

1
