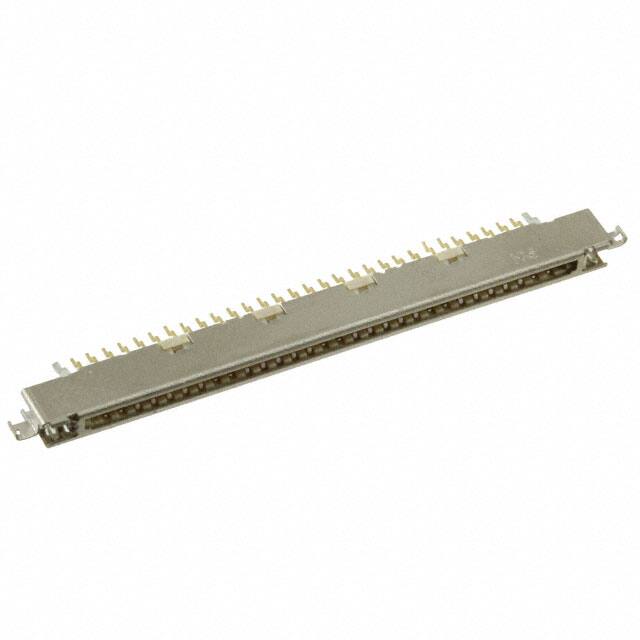

MDF76TW-30S-1H(55)

Specifications

Number Of Positions Loaded

All

Mil Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

JESD-609 Kodu

e3

Contact Materials

Phosphor Bronze

Current Rating Amps

Varies by WireGAuge

Çalışma Sıcaklığı

-40°C~85°C

Polarization Key

POLARIZED HOUSING

Mixed Contacts

NO

Applications

General Purpose

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Nominal Gerilim

200VAC

Ul Flammability Code

94V-0

Material Flammability Rating

UL94 V-0

Insulation Color

Beige

Pcb Contact Pattern

RECTANGULAR

Style

Board to Cable/Wire

Total Number Of Contacts

30

Additional Feature

EMI SHIELDED

Kurşunsuz Kodu

yes

Yayın Yılı

2017

Pitch Mating

0.039 1.00mm

Fastening Type

Push-Pull

Din Conformance

NO

Reliability

COMMERCIAL

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance

40mOhm

Iec Conformance

NO

Contact Gender

FEMALE

Connector Type

Receptacle

Montaj

Surface Mount

Montaj Tipi

Board Cutout, Surface Mount, Right Angle

Mating Contact Pitch

0.039 inch

Number Of Pcb Rows

1

Contact Finish Thickness Mating

3.90μin 0.099μm

Seri

MDF76

Terminal

Solder

Contact Finish Thickness Post

1.25μin 0.032μm

Ambalaj

Tape & Reel (TR)
