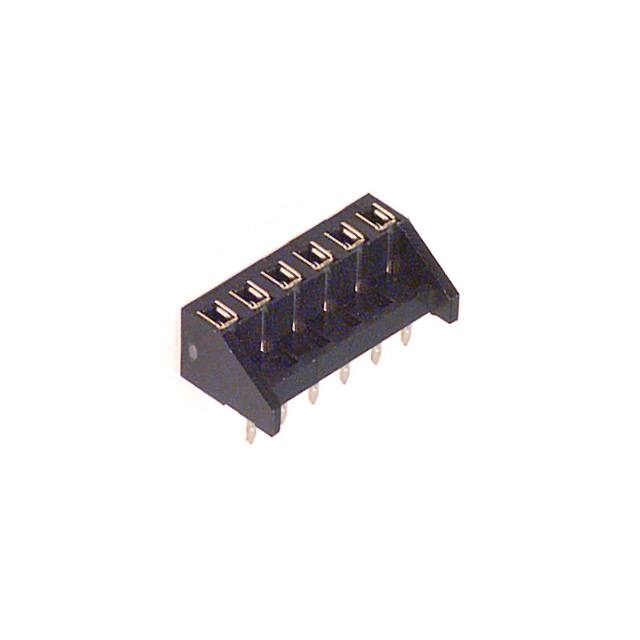

MDF7-6S-2.54DSA(55)

Specifications

Pozisyon Sayısı

6

Insulation Materials

Polyamide (PA), Nylon

Sıra Sayısı

1

Lead Pitch

2.54mm

Number Of Conductors

ONE

Contact Type

Female Socket

Contact Shape

Square

Filter Feature

NO

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Parça Durumu

Active

Terminal

Solder

Seri

MDF7

Contact Finish Thickness Post

78.7μin 2.00μm

Ambalaj

Bulk

Connector Type

Receptacle, Bottom Entry

Montaj

Through Hole

Montaj Tipi

Through Hole

Contact Finish Thickness Mating

78.7μin 2.00μm

Number Of Pcb Rows

1

Din Conformance

NO

Reliability

COMMERCIAL

Contact Resistance

30mOhm

Iec Conformance

NO

Kurşunsuz Kodu

yes

Pitch Mating

0.100 2.54mm

Rated Current Signal

3A

Fastening Type

Push-Pull

Contact Length Post

0.118 3.00mm

Pcb Contact Pattern

RECTANGULAR

Flammability Rating

UL94 V-0

Style

Board to Board

Ul Flammability Code

94V-0

Nominal Gerilim

250VAC

Gender

Female

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Akım Değeri

3A

Housing Color

Black
