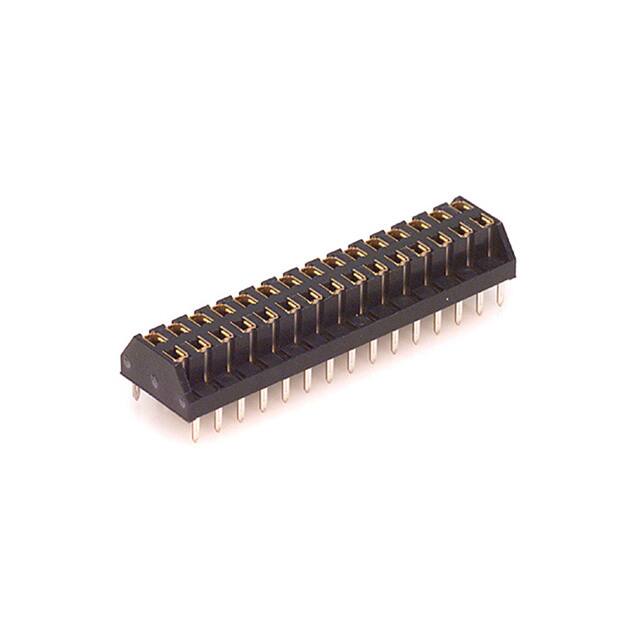

MDF7-30D-2.54DSA(56)

Specifications

Insulation Materials

Polyamide (PA), Nylon

Pozisyon Sayısı

30

Lead Pitch

2.54mm

Sıra Sayısı

2

Number Of Conductors

ONE

Contact Type

Female Socket

Contact Shape

Square

Filter Feature

NO

Dielectric Withstanding Voltage

650VAC V

Contact Finish Mating

Gold

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Body Depth

0.197 inch

HTS Kodu

8536.69.40.40

Terminal

Solder

Contact Finish Post

Tin

Seri

MDF7

Contact Finish Thickness Post

39.4μin 1.00μm

Durability

50 Cycles

Ambalaj

Bulk

Connector Type

Receptacle, Bottom Entry

Montaj

Through Hole

Montaj Tipi

Through Hole

Mating Contact Pitch

0.1 inch

Contact Finish Thickness Mating

8.00μin 0.203μm

Din Conformance

NO

Reliability

COMMERCIAL

Iec Conformance

NO

Insulation Resistance

1000000000Ohm

Row Spacing Mating

0.100 (2.54mm)

Pitch Mating

0.100 2.54mm

Rated Current Signal

3A

Length Termination

0.118 inch

Fastening Type

Push-Pull

Contact Length Post

0.118 3.00mm

Body Length Or Diameter

1.5 inch

Style

Board to Board

Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE
