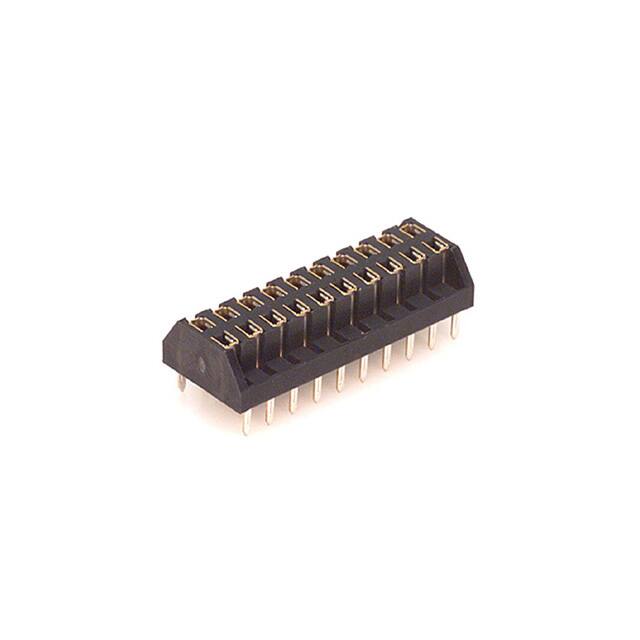

MDF7-20D-2.54DSA(56)

Specifications

Insulation Height

0.197 5.00mm

Mixed Contacts

NO

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Black

Mil Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Body Breadth

0.394 inch

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-35°C~85°C

REACH Uyumluluk Kodu

unknown

Housing Material

Polyamide

Contact Materials

Phosphor Bronze

JESD-609 Kodu

e4

Rated Current Signal

3A

Length Termination

0.118 inch

Fastening Type

Push-Pull

Row Spacing Mating

0.100 (2.54mm)

Pitch Mating

0.100 2.54mm

Iec Conformance

NO

Insulation Resistance

1000000000Ohm

Din Conformance

NO

Reliability

COMMERCIAL

Contact Resistance

30mOhm

Option

GENERAL PURPOSE

Gender

Female

Nominal Gerilim

250VAC

Ul Flammability Code

94V-0

Akım Değeri

3A

Material Flammability Rating

UL94 V-0

Body Length Or Diameter

1 inch

Style

Board to Board

Flammability Rating

UL94 V-0

Contact Length Post

0.118 3.00mm

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Contact Finish Mating

Gold

Montaj Tipi

Through Hole

Mating Contact Pitch

0.1 inch
