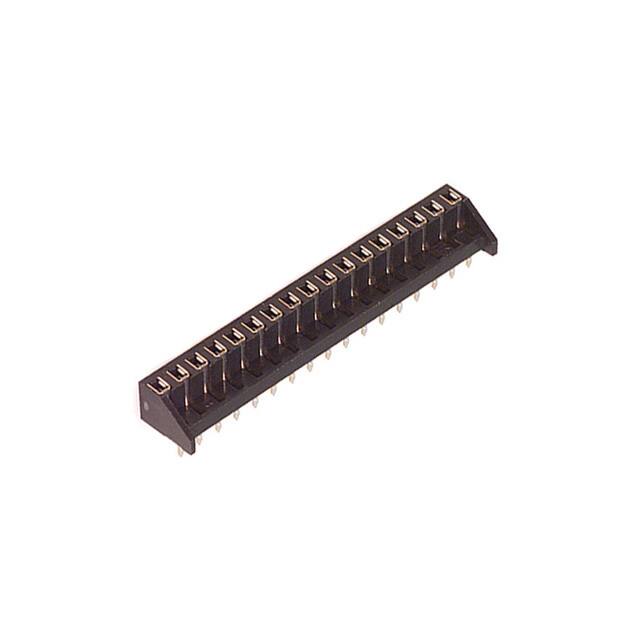

MDF7-17S-2.54DSA(55)

Specifications

Montaj Tipi

Through Hole

Contact Finish Thickness Mating

78.7μin 2.00μm

Connector Type

Receptacle, Bottom Entry

Montaj

Through Hole

Contact Finish Thickness Post

78.7μin 2.00μm

Durability

30 Cycles

Ambalaj

Bulk

HTS Kodu

8536.69.40.40

Terminal

Solder

Seri

MDF7

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Contact Finish Mating

Tin

Dielectric Withstanding Voltage

650VAC V

Filter Feature

NO

Contact Shape

Square

Number Of Conductors

ONE

Contact Type

Female Socket

Insulation Materials

Polyamide (PA), Nylon

Pozisyon Sayısı

17

Lead Pitch

2.54mm

Sıra Sayısı

1

Mil Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Body Breadth

0.295 inch

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-35°C~85°C

JESD-609 Kodu

e3

Contact Materials

Phosphor Bronze

Housing Material

Plastic

REACH Uyumluluk Kodu

unknown

Current Rating Amps

3A

Insulation Height

0.197 5.00mm

Mixed Contacts

NO

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Black

ECCN Kodu

EAR99

Nominal Gerilim

250VAC
