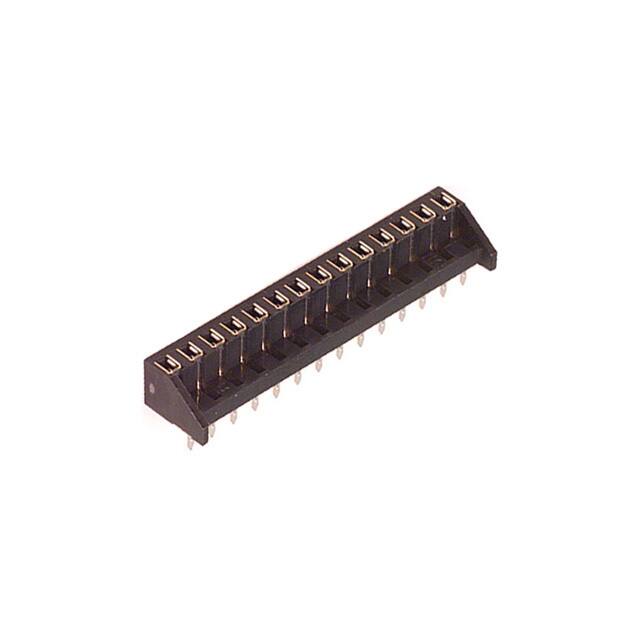

MDF7-14S-2.54DSA(55)

Specifications

Number Of Positions Loaded

All

Mil Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Housing Material

Plastic

Contact Materials

Phosphor Bronze

JESD-609 Kodu

e3

Current Rating Amps

3A

Çalışma Sıcaklığı

-35°C~85°C

Insulation Height

0.197 5.00mm

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

Not Applicable

Housing Color

Black

ECCN Kodu

EAR99

Reference Standard

UL

Option

GENERAL PURPOSE

Gender

Female

Nominal Gerilim

250VAC

Ul Flammability Code

94V-0

Material Flammability Rating

UL94 V-0

Pcb Contact Pattern

RECTANGULAR

Contact Length Post

0.118 3.00mm

Style

Board to Board

Flammability Rating

UL94 V-0

Pitch Mating

0.100 2.54mm

Fastening Type

Push-Pull

Din Conformance

NO

Reliability

COMMERCIAL

Contact Resistance

30mOhm

Iec Conformance

NO

Connector Type

Receptacle, Bottom Entry

Montaj

Through Hole

Montaj Tipi

Through Hole

Number Of Pcb Rows

1

Contact Finish Thickness Mating

78.7μin 2.00μm

HTS Kodu

8536.69.40.40

Terminal

Solder

Seri

MDF7

Contact Finish Thickness Post

78.7μin 2.00μm

Ambalaj

Bulk
