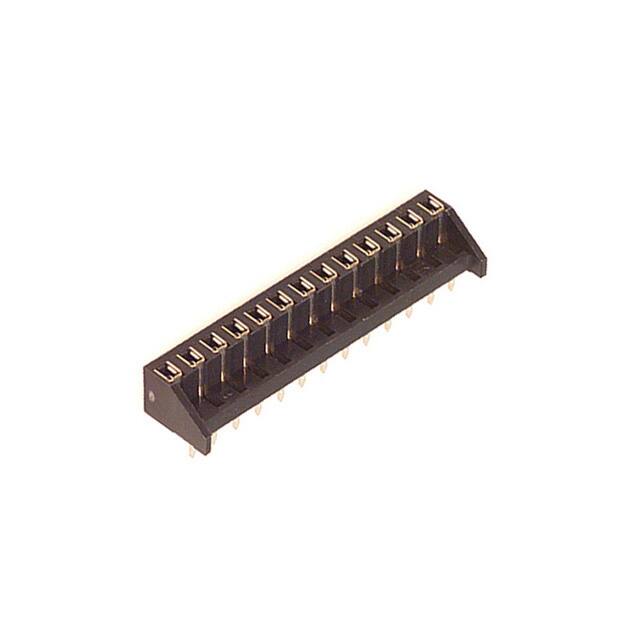

MDF7-13S-2.54DSA(55)

Specifications

Reference Standard

UL

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Black

Stack Height

3.5mm

Mixed Contacts

NO

Insulation Height

0.197 5.00mm

Çalışma Sıcaklığı

-35°C~85°C

JESD-609 Kodu

e3

REACH Uyumluluk Kodu

unknown

Housing Material

Polyamide

Contact Materials

Phosphor Bronze

Fabrika Tedarik Süresi

10 Weeks

Mil Conformance

NO

Number Of Positions Loaded

All

Insulation Resistance

1GOhm

Iec Conformance

NO

Contact Resistance

30mOhm

Din Conformance

NO

Reliability

COMMERCIAL

Fastening Type

Push-Pull

Rated Current Signal

3A

Pitch Mating

0.100 2.54mm

Style

Board to Board

Flammability Rating

UL94 V-0

Pcb Contact Pattern

RECTANGULAR

Contact Length Post

0.118 3.00mm

Akım Değeri

3A

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Gender

Female

Nominal Gerilim

250VAC

Ul Flammability Code

94V-0

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Contact Finish Mating

Tin

Ambalaj

Tray

Contact Finish Thickness Post

78.7μin 2.00μm

Seri

MDF7
