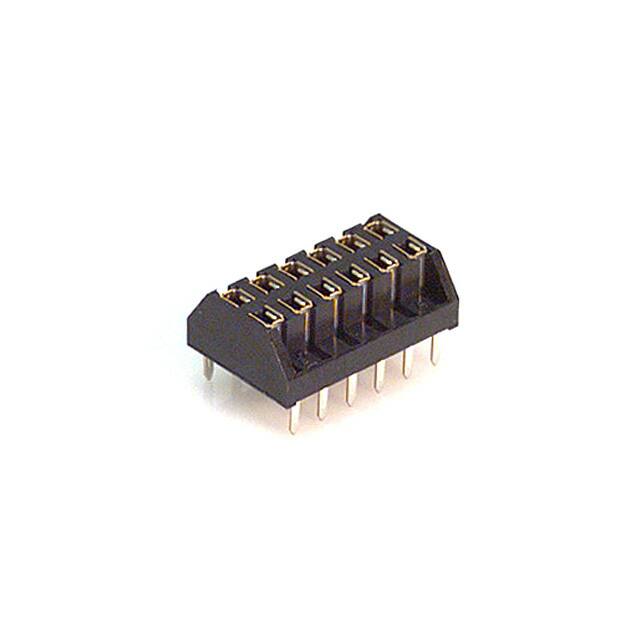

MDF7-12D-2.54DSA(56)

Specifications

Contact Materials

Phosphor Bronze

Housing Material

Polyamide

REACH Uyumluluk Kodu

unknown

Çalışma Sıcaklığı

-35°C~85°C

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

10 Weeks

Body Breadth

0.394 inch

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Black

Reference Standard

UL

Mixed Contacts

NO

Insulation Height

0.197 5.00mm

Contact Length Post

0.118 3.00mm

Style

Board to Board

Flammability Rating

UL94 V-0

Body Length Or Diameter

0.6 inch

Material Flammability Rating

UL94 V-0

Akım Değeri

3A

Option

GENERAL PURPOSE

Gender

Female

Nominal Gerilim

250VAC

Ul Flammability Code

94V-0

Contact Resistance

30mOhm

Din Conformance

NO

Reliability

COMMERCIAL

Insulation Resistance

1000000000Ohm

Iec Conformance

NO

Pitch Mating

0.100 2.54mm

Row Spacing Mating

0.100 (2.54mm)

Fastening Type

Push-Pull

Length Termination

0.118 inch

Rated Current Signal

3A

Seri

MDF7

Contact Finish Post

Tin

Terminal

Solder

Body Depth

0.197 inch

Durability

50 Cycles

Ambalaj

Bulk

Contact Finish Thickness Post

39.4μin 1.00μm
