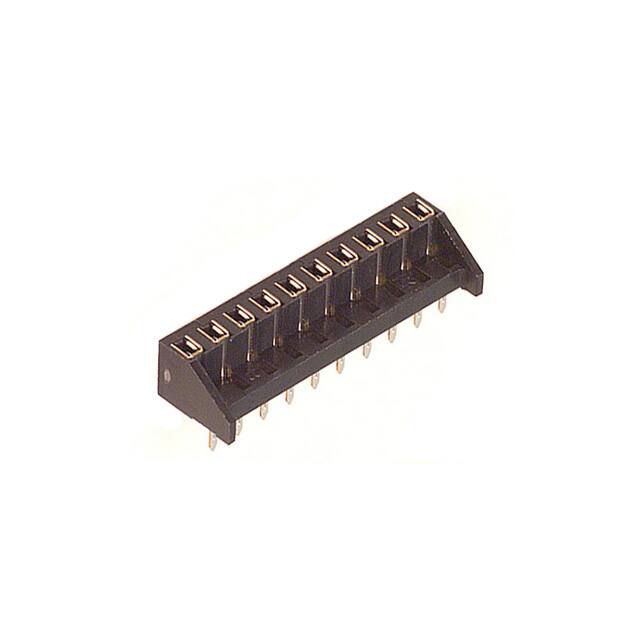

MDF7-10S-2.54DSA(55)

Specifications

Ambalaj

Bulk

Contact Finish Thickness Post

78.7μin 2.00μm

Çalışma Sıcaklığı

-35°C~85°C

Terminal

Solder

Current Rating Amps

3A

Contact Finish Post

Tin

Seri

MDF7

Contact Materials

Phosphor Bronze

Housing Material

Polyamide

Contact Finish Thickness Mating

78.7μin 2.00μm

Fabrika Tedarik Süresi

12 Weeks

Renk

Black

Montaj Tipi

Through Hole

Number Of Positions Loaded

All

Montaj

Through Hole

Connector Type

Receptacle, Bottom Entry

Housing Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Contact Finish Mating

Tin

Insulation Height

0.197 5.00mm

Flammability Rating

UL94 V-0

Style

Board to Board

Contact Length Post

0.118 3.00mm

Contact Shape

Square

Insulation Color

Black

Contact Plating

Tin

Material Flammability Rating

UL94 V-0

Akım Değeri

3A

Nominal Gerilim

250VAC

Gender

Female

Insulation Resistance

1GOhm

Sıra Sayısı

1

Lead Pitch

2.54mm

Min. Çalışma Sıcaklığı

-30°C

Pozisyon Sayısı

10

Maks. Çalışma Sıcaklığı

85°C

Insulation Materials

Polyamide (PA), Nylon
