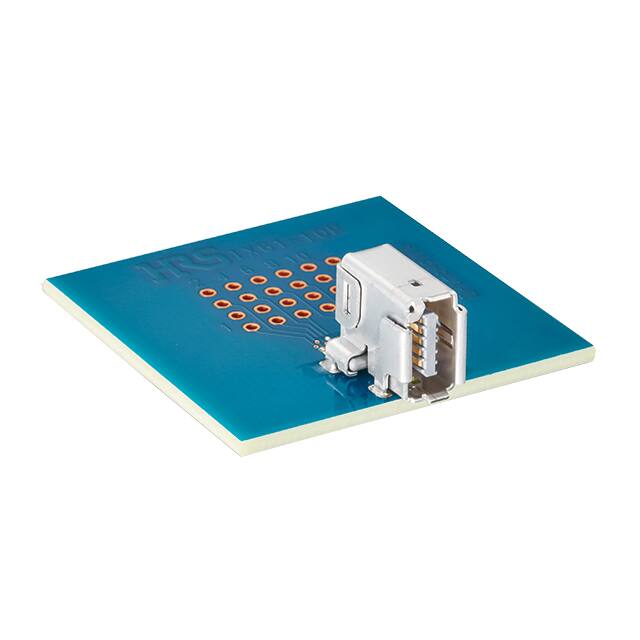

IX61G-A-10P

Specifications

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Operating Temperature Min

-40°C

Contact Pattern

RECTANGULAR

Empty Shell

NO

Filter Feature

NO

Operating Temperature Max

85°C

Number Of Ports

1

Total Number Of Contacts

10

Özellikler

Board Guide

Body Breadth

0.244 inch

Shell Finish

TIN

Body Length Or Diameter

0.37 inch

Number Of Pcb Rows

1

Seri

ix Industrial™

Shell Material

STAINLESS STEEL

Plating Thickness

7.87μin

Insulator Color

GRAY

Sıra Sayısı

2

Connector Type

Multi-Purpose

Insulation Resistance

500000000Ohm

Option

GENERAL PURPOSE

Rated Current Signal

1.5A

RoHS Durumu

RoHS Compliant

Connector Style

Receptacle

Contact Finish

Gold

Insulation Materials

LIQUID CRYSTAL POLYMER

Contact Resistance

30mOhm

Terminal

Solder

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness

8.00μin 0.203μm

Parça Durumu

Active

Yayın Yılı

2018

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Gender

MALE

Body Depth

0.459 inch

Reference Standard

UL

Fabrika Tedarik Süresi

24 Weeks
