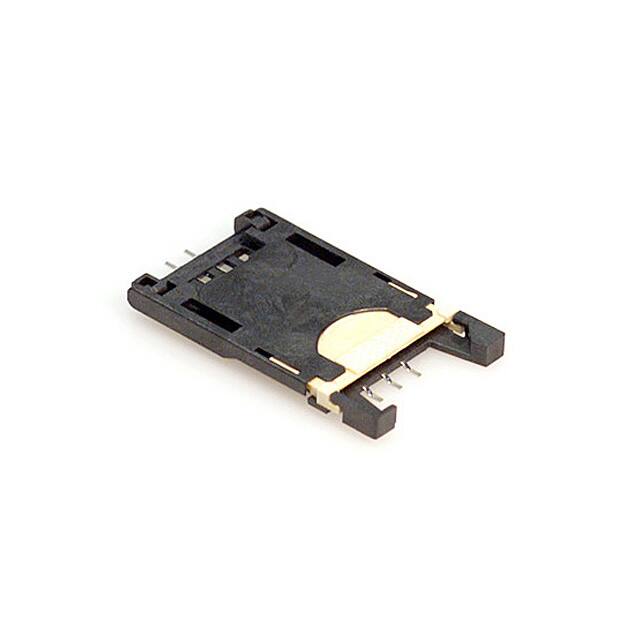

ID1A-6S-2.54SF(21)

Specifications

Durability

5000 Cycles

Dielectric Withstanding Voltage

500VAC V

Rated Current Signal

1A

Mating Information

NO

Operating Temperature Min

-30°C

Mil Conformance

NO

Özellikler

Board Guide

REACH Uyumluluk Kodu

unknown

Insulator Color

BLACK

Din Conformance

NO

Insertion Removal Method

Hinged Lid

Reliability

COMMERCIAL

Body Depth

1.15 inch

Contact Pattern

RECTANGULAR

Connector Type

Connector and Ejector

Montaj

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

6

Mixed Contacts

NO

Mounting Feature

Normal, Standard - Top

Contact Finish

Gold

Plating Thickness

4μin

Pozisyon Sayısı

6

Contact Materials

PHOSPHOR BRONZE

Parça Durumu

Obsolete

Seri

ID1A

RoHS Durumu

Non-RoHS Compliant

Lead Pitch

2.54mm

Operating Temperature Max

80°C

Insulation Materials

SYNTHETIC RESIN

Insulation Resistance

1000000000Ohm

Card Type

SIM Card

Ambalaj

Tape & Reel (TR)

Additional Feature

POLARIZED

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Contact Gender

FEMALE

Mating Contact Pitch

0.1 inch

Option

GENERAL PURPOSE

Number Of Ports

1
