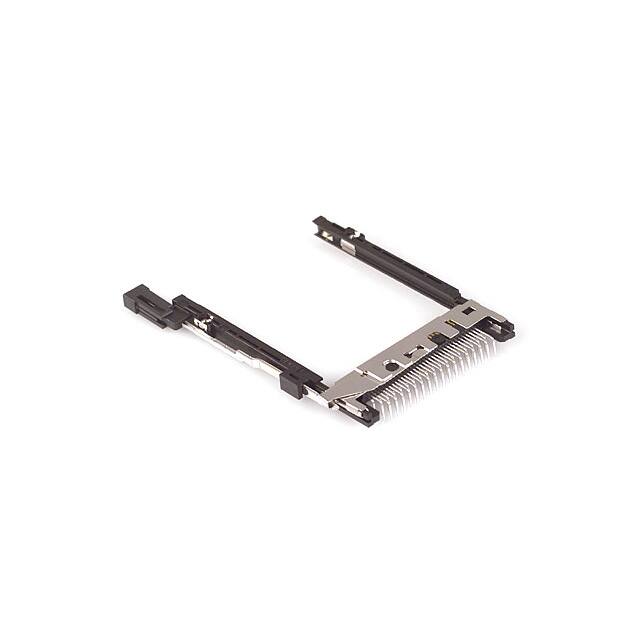

IC7-68PDR-1.27DS-EJR

Specifications

Contact Style

RND PIN-SKT

REACH Uyumluluk Kodu

unknown

Insertion Removal Method

Push In, Push Out

Parça Durumu

Obsolete

Body Depth

4.016 inch

Sıra Sayısı

2

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Bulk

Reliability

COMMERCIAL

Mating Contact Pitch

0.05 inch

Terminal Adımı

1.27mm

Contact Materials

BRASS

Length Termination

0.118 inch

Mating Contact Row Spacing

0.05 inch

Pcb Contact Pattern

STAGGERED

Filter Feature

NO

Ul Flammability Code

94V-0

Özellikler

Board Guide, Card Guide

Option

GENERAL PURPOSE

Body Length Or Diameter

2.559 inch

Total Number Of Contacts

68

Number Of Conductors

ONE

Din Conformance

NO

Kurşunsuz

Contains Lead

Mil Conformance

NO

Connector Type

Connector and Ejector

Mounting Feature

Reverse - Bottom

Height Above Board

0.213 5.40mm

Number Of Ports

1

Number Of Pcb Rows

4

Rated Current Signal

0.5A

Insulation Resistance

1000000000Ohm

Iec Conformance

NO

Termination Type

SOLDER

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

IC7

Additional Feature

STAGGERED CONFIGURATION, WITH EJECTOR

Contact Pattern

RECTANGULAR

Contact Finish

Gold

Contact Gender

MALE
