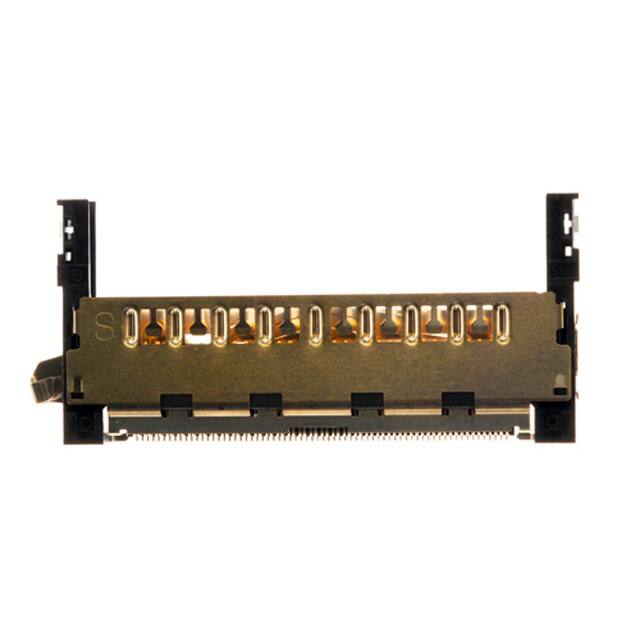

IC11S-68PL-1.27SF-EJR

Specifications

Height Above Board

0.220 5.59mm

Option

GENERAL PURPOSE

Filter Feature

NO

Sıra Sayısı

2

Total Number Of Contacts

68

Operating Temperature Max

85°C

Body Breadth

0.22 inch

Reference Standard

UL

Number Of Conductors

ONE

Kılıf / Paket

SMD/SMT

Kurşunsuz

Contains Lead

Number Of Pcb Rows

1

Rated Current Signal

0.5A

Pozisyon Sayısı

68

Montaj Tipi

Surface Mount, Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

no

Parça Durumu

Obsolete

RoHS Durumu

Non-RoHS Compliant

Body Length Or Diameter

2.535 inch

Iec Conformance

NO

Operating Temperature Min

-55°C

Seri

IC11S

Connector Type

Connector and Ejector

Montaj

Surface Mount

Insulation Resistance

1000000000Ohm

Din Conformance

NO

Body Depth

3.646 inch

Dielectric Withstanding Voltage

500VAC V

Mounting Feature

Normal, Standard - Top

Bodyshell Style

RECEPTACLE

Contact Gender

FEMALE

Terminal Adımı

1.27mm

Mixed Contacts

NO

Reliability

COMMERCIAL

Contact Pattern

RECTANGULAR

Contact Style

SQ PIN-SKT

Number Of Ports

1

Insertion Removal Method

Push In, Push Out

Insulation Materials

POLYPHENYLENE SULPHIDE
