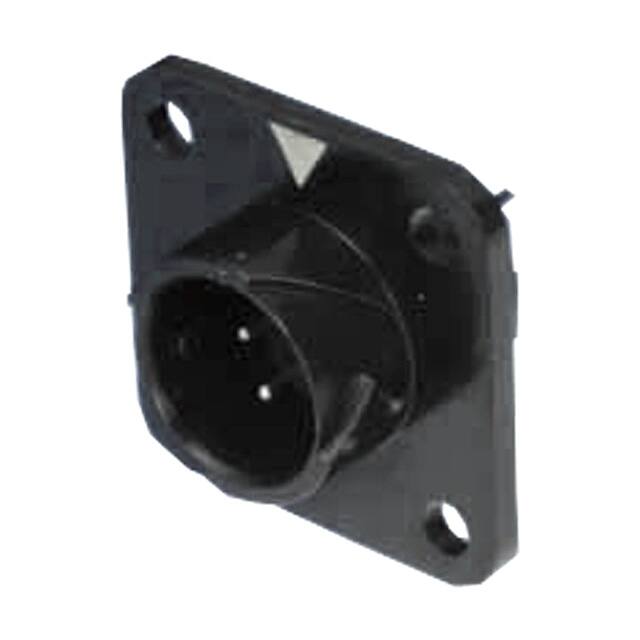

HR34B-12WRB-4P

Specifications

Ingress Protection

IP67F/68F - Dust Tight, Oil Resistant, Waterproof

RoHS Durumu

RoHS Compliant

Shielding

Unshielded

Contact Materials

Brass

Contact Finish Mating

Silver

Coupling Type

SNAP

Renk

Black

JESD-609 Kodu

e3

Empty Shell

NO

Shell Material

Zinc Alloy

Mounting Feature

Flange

Fastening Type

Bayonet Lock

Yayın Yılı

2006

Din Conformance

NO

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Shell Size Insert

12

Seri

HR34B

Çalışma Sıcaklığı

-25°C~125°C

Mixed Contacts

NO

Terminal

Solder Cup

Filter Feature

NO

Contact Finish Thickness Mating

78.7μin 2.00μm

Applications

Telecommunications

Backshell Type

SOLID

Pozisyon Sayısı

4 (Power)

Shell Finish

Chrome

Mil Conformance

NO

Fabrika Tedarik Süresi

12 Weeks

Iec Conformance

NO

Montaj Tipi

Panel Mount

Material Flammability Rating

UL94 V-0

Number Of Contacts

4

Kurşunsuz Kodu

yes

Connector Type

Receptacle, Male Pins

Gender

Receptacle

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

N (Normal)

Current Rating Amps

5A
