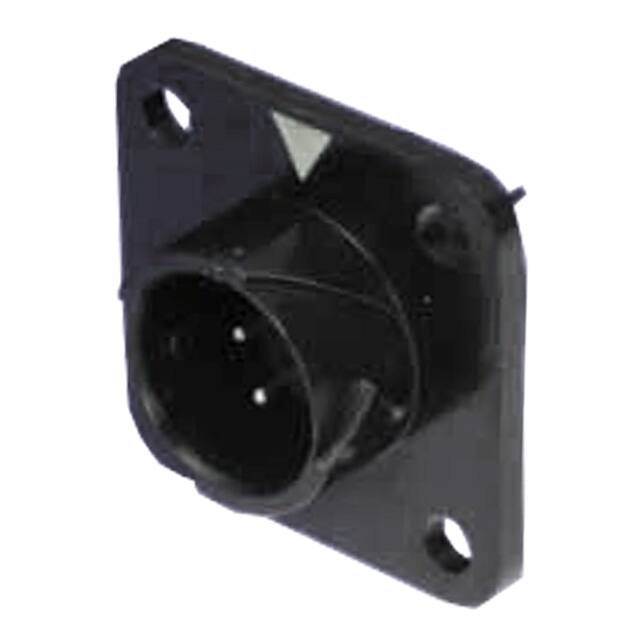

HR34B-12WRA-10P

Specifications

Shell Material

Zinc Alloy

Empty Shell

NO

JESD-609 Kodu

e3

Renk

Black

Contact Materials

Copper Alloy

Contact Finish Mating

Gold

Coupling Type

SNAP

Shielding

Unshielded

RoHS Durumu

RoHS Compliant

Ingress Protection

IP67F/68F - Dust Tight, Oil Resistant, Waterproof

Çalışma Sıcaklığı

-25°C~125°C

Nominal Gerilim

200VAC 250VDC

Seri

HR34B

Parça Durumu

Active

Shell Size Insert

12

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bag

Din Conformance

NO

Yayın Yılı

1997

Fastening Type

Bayonet Lock

Mounting Feature

Flange

Pozisyon Sayısı

10 (Power)

Backshell Type

SOLID

Contact Finish Thickness Mating

8.00μin 0.203μm

Applications

Telecommunications

Filter Feature

NO

Terminal

Solder Cup

ECCN Kodu

EAR99

Mixed Contacts

NO

Insert Material

Polyphenylene Sulfide (PPS)

REACH Uyumluluk Kodu

unknown

Current Rating Amps

3A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

N (Normal)

Gender

Receptacle

HTS Kodu

8536.69.40.20

Connector Type

Receptacle, Male Pins

Number Of Contacts

10

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0
