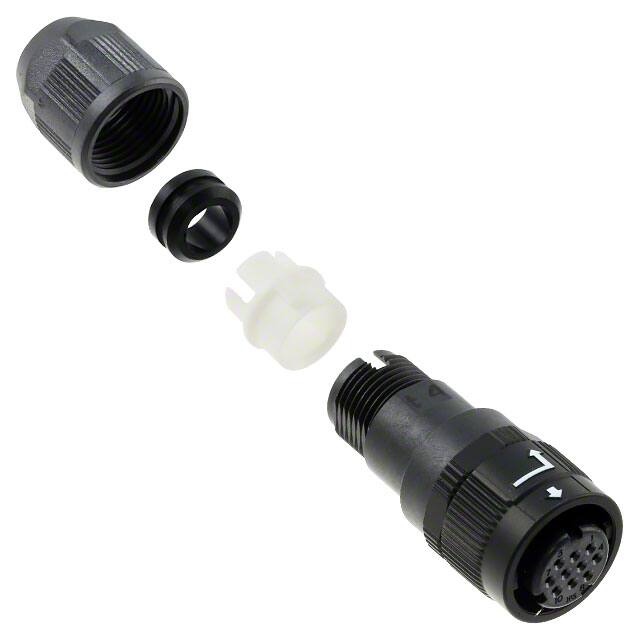

HR34B-12WPD-10S

Specifications

HTS Kodu

8536.69.40.20

Connector Type

Plug, Female Sockets

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

N (Normal)

Current Rating Amps

3A

Insert Material

Polyphenylene Sulfide (PPS)

REACH Uyumluluk Kodu

unknown

Cable Opening

0.224 ~ 0.256 (5.70mm ~ 6.50mm)

Shell Finish

Chrome

Mil Conformance

NO

Backshell Material Plating

Polyamide (PA), Nylon

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Material Flammability Rating

UL94 V-0

Number Of Contacts

10

Kurşunsuz Kodu

yes

Backshell Type

SOLID

Pozisyon Sayısı

10 (Power)

ECCN Kodu

EAR99

Mixed Contacts

NO

Terminal

Solder Cup

Filter Feature

NO

Contact Finish Thickness Mating

8.00μin 0.203μm

Applications

Telecommunications

Parça Durumu

Active

Shell Size Insert

12

Seri

HR34B

Çalışma Sıcaklığı

-25°C~125°C

Nominal Gerilim

200VAC 250VDC

Fastening Type

Bayonet Lock

Yayın Yılı

2005

Ambalaj

Tray

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Backshell, Coupling Nut, Strain Relief

Shielding

Unshielded

Contact Materials

Phosphor Bronze

Contact Finish Mating

Gold

Coupling Type

THREADED
