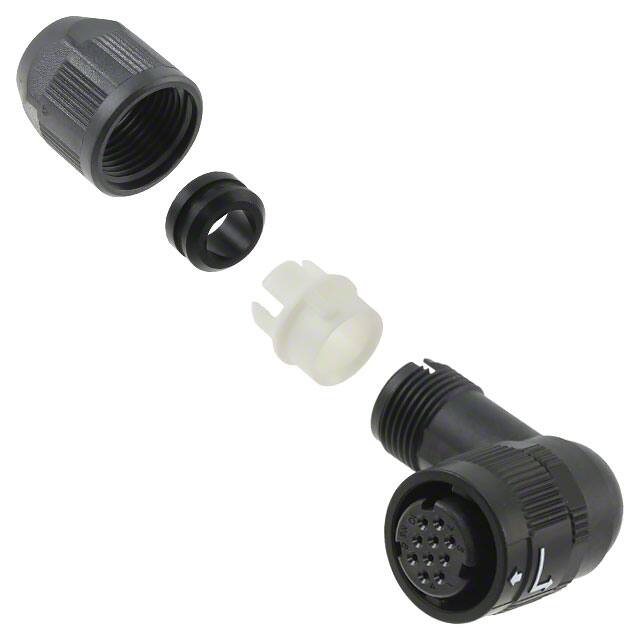

HR34B-12WLPD-10S

Specifications

Backshell Type

SOLID

Pozisyon Sayısı

10 (Power)

Mixed Contacts

NO

Terminal

Solder Cup

Filter Feature

NO

Contact Finish Thickness Mating

8.00μin 0.203μm

Applications

Telecommunications

Connector Type

Plug, Female Sockets

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

N (Normal)

Current Rating Amps

3A

Insert Material

Polyphenylene Sulfide (PPS)

REACH Uyumluluk Kodu

unknown

Backshell Material Plating

Polyamide (PA), Nylon

Mil Conformance

NO

Shell Finish

Chrome

Cable Opening

0.224 ~ 0.256 (5.70mm ~ 6.50mm)

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Montaj Tipi

Free Hanging (In-Line), Right Angle

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Number Of Contacts

10

Özellikler

Backshell, Coupling Nut, Rotatable, Strain Relief

Shielding

Unshielded

Coupling Type

THREADED

Contact Finish Mating

Gold

Contact Materials

Phosphor Bronze

Renk

Black

Empty Shell

NO

JESD-609 Kodu

e3

Shell Material

Zinc Alloy

Ingress Protection

IP67F/68F - Dust Tight, Oil Resistant, Waterproof

RoHS Durumu

RoHS Compliant

Shell Size Insert

12

Parça Durumu

Active

Seri

HR34B

Nominal Gerilim

200VAC 250VDC

Çalışma Sıcaklığı

-25°C~125°C

Fastening Type

Bayonet Lock
