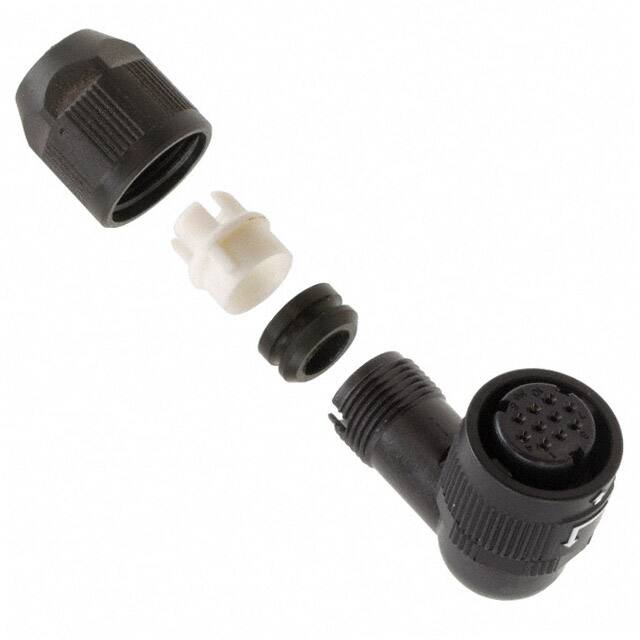

HR34B-12WLPA-10S(71)

Specifications

Filter Feature

NO

Terminal

Solder Cup

Flammability Rating

UL94 V-0

Applications

Telecommunications

Pozisyon Sayısı

10 (Power)

Backshell Type

SOLID

Backshell Material Plating

Aluminum Alloy, Black Chromate

Montaj Tipi

Free Hanging (In-Line), Right Angle

Material Flammability Rating

UL94 V-0

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Ingress Protection

IP67F/68F - Dust Tight, Oil Resistant, Waterproof

Plating

Chromate

RoHS Durumu

RoHS Compliant

Shielding

Unshielded

Renk

Black

Akım Değeri

3A

Yayın Yılı

2006

Ambalaj

Tray

Kurşunsuz

Lead Free

Parça Durumu

Active

Nominal Gerilim

200VAC 250VDC

Çalışma Sıcaklığı

-25°C~125°C

Mixed Contacts

NO

Contact Finish Thickness Mating

8.00μin 0.203μm

Ratings

Dust Tight, IP67, Waterproof

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Mil Conformance

NO

Shell Finish

Chrome

Cable Opening

0.224 ~ 0.256 (5.70mm ~ 6.50mm)

Number Of Contacts

10

Montaj

Cable, Free Hanging

Wirecable Diameter

7.3 mm

Gender

Male

Connector Type

Plug, Female Sockets

Orientation

N (Normal)

Insert Material

Polyphenylene Sulfide (PPS)

REACH Uyumluluk Kodu

unknown

Body Material

Aluminium
