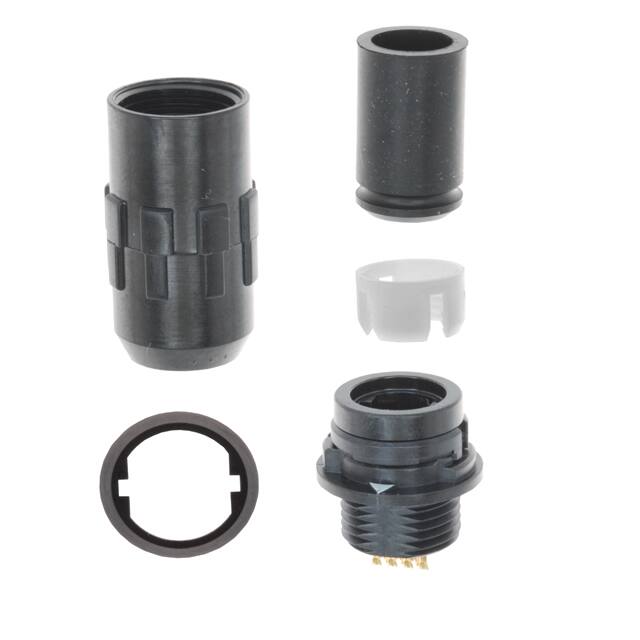

HR30-7J-12P(71)

Specifications

Radyasyon Dayanımı

No

Backshell Type

SOLID

Pozisyon Sayısı

12 (Power)

ECCN Kodu

EAR99

Terminal

Solder Cup

Filter Feature

NO

Applications

Industrial, Marine, Medical

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Max Current Rating

2A

Backshell Material Plating

Polyphenylene Sulfide (PPS)

Montaj Tipi

Free Hanging (In-Line)

Material Flammability Rating

UL94 V-0

Renk

Black

Akım Değeri

2A

Ingress Protection

IP67/68 - Dust Tight, Waterproof

Housing Material

Plastic

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Çalışma Sıcaklığı

-25°C~85°C

Nominal Gerilim

30VAC 42VDC

Yayın Yılı

2004

Ambalaj

Tray

Reach Svhc

No SVHC

Mixed Contacts

NO

Contact Finish Thickness Mating

8.00μin 0.203μm

Ratings

Dust Tight, IP67, Waterproof

Uzunluk

37.3mm

Connector Type

Jack, Male Pins

HTS Kodu

8536.69.40.20

Gender

Receptacle

Orientation

Keyed

Insert Material

Polyphenylene Sulfide (PPS)

Mil Conformance

NO

Cable Opening

0.244 ~ 0.276 (6.20mm ~ 7.00mm)

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz Kodu

yes

Montaj

Cable, Free Hanging

Number Of Contacts

12

Özellikler

Backshell, Strain Relief
