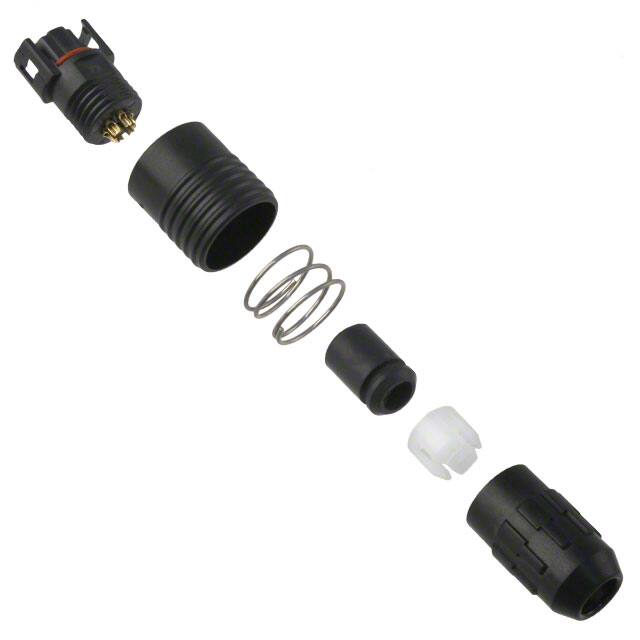

HR30-6PA-6S(71)

Specifications

ECCN Kodu

EAR99

Filter Feature

NO

Terminal

Solder Cup

Applications

Industrial, Marine, Medical

Radyasyon Dayanımı

No

Pozisyon Sayısı

6 (Power)

Backshell Type

SOLID

Backshell Material Plating

Polybutylene Terephthalate (PBT)

Montaj Tipi

Free Hanging (In-Line)

Material Flammability Rating

UL94 V-0

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Max Current Rating

2A

Ingress Protection

IP67/68 - Dust Tight, Waterproof

Housing Material

Plastic

RoHS Durumu

RoHS Compliant

Renk

Black

Akım Değeri

2A

Yayın Yılı

2004

Ambalaj

Tray

Kurşunsuz

Lead Free

Parça Durumu

Active

Nominal Gerilim

100VAC 140VDC

Çalışma Sıcaklığı

-25°C~85°C

Mixed Contacts

NO

Contact Finish Thickness Mating

8.00μin 0.203μm

Ratings

Dust Tight, IP67, Waterproof

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

12 Weeks

Iec Conformance

NO

Total Number Of Contacts

6

Mil Conformance

NO

Cable Opening

0.138 ~ 0.169 (3.50mm ~ 4.30mm)

Montaj

Cable, Free Hanging

Kurşunsuz Kodu

yes

Uzunluk

29.8mm

Connector Type

Plug, Female Sockets

Orientation

Keyed

Insert Material

Polyphenylene Sulfide (PPS)

Body Material

Polyphenylene

Özellikler

Backshell, Strain Relief
