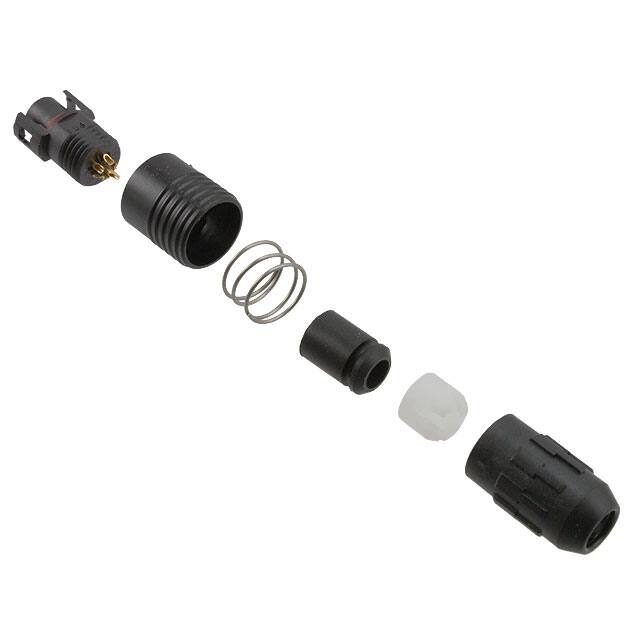

HR30-6PA-6P(71)

Specifications

Kurşunsuz

Lead Free

Parça Durumu

Active

Çalışma Sıcaklığı

-25°C~85°C

Nominal Gerilim

100VAC 140VDC

Yayın Yılı

2004

Ambalaj

Tray

Renk

Black

Akım Değeri

2A

Ingress Protection

IP67/68 - Dust Tight, Waterproof

Housing Material

Plastic

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Backshell Material Plating

Polybutylene Terephthalate (PBT)

Montaj Tipi

Free Hanging (In-Line)

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Backshell Type

SOLID

Pozisyon Sayısı

6 (Power)

Terminal

Solder Cup

Filter Feature

NO

Applications

Industrial, Marine, Medical

Contact Gender

Male

Shell Size Insert

6

Seri

HR30

Fastening Type

Push-Pull

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Backshell, Strain Relief

Contact Materials

Brass

Contact Finish Mating

Gold

Coupling Type

SNAP

Empty Shell

NO

JESD-609 Kodu

e4

Shell Material

Polybutylene Terephthalate (PBT)

Body Material

Polyphenylene

Connector Type

Plug, Male Pins

Orientation

Keyed

Insert Material

Polyphenylene Sulfide (PPS)

Mil Conformance

NO

Cable Opening

0.138 ~ 0.169 (3.50mm ~ 4.30mm)
