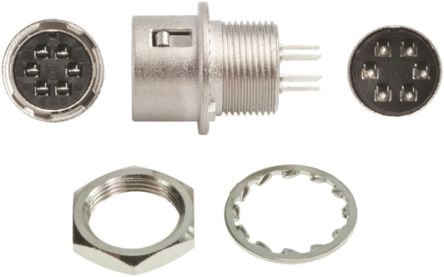

HR10G-7R-6SB(73)

Specifications

Empty Shell

NO

Mil Conformance

NO

Connector Type

Receptacle, Female Sockets

Coupling Type

SNAP

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

78.7μin 2.00μm

Shielding

Shielded

Shell Material

Zinc Alloy

Iec Conformance

NO

Akım Değeri

2A

JESD-609 Kodu

e4

Terminal

Solder

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Parça Durumu

Active

Shell Finish

Nickel

Total Number Of Contacts

6

Nominal Gerilim

100VAC 140VDC

Din Conformance

NO

Orientation

Keyed

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insert Material

Polybutylene Terephthalate (PBT)

Ambalaj

Tray

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-25°C~85°C

Fastening Type

Push-Pull

Kurşunsuz Kodu

yes

Yayın Yılı

1998

Backshell Type

SOLID

Montaj Tipi

Panel Mount, Through Hole

Contact Finish Mating

Silver

Pozisyon Sayısı

6

Montaj

Bulkhead, Panel, Through Hole

Contact Gender

Female

ECCN Kodu

EAR99

Filter Feature

NO

REACH Uyumluluk Kodu

unknown

Housing Material

Brass

Fabrika Tedarik Süresi

10 Weeks

Shell Size Insert

7
