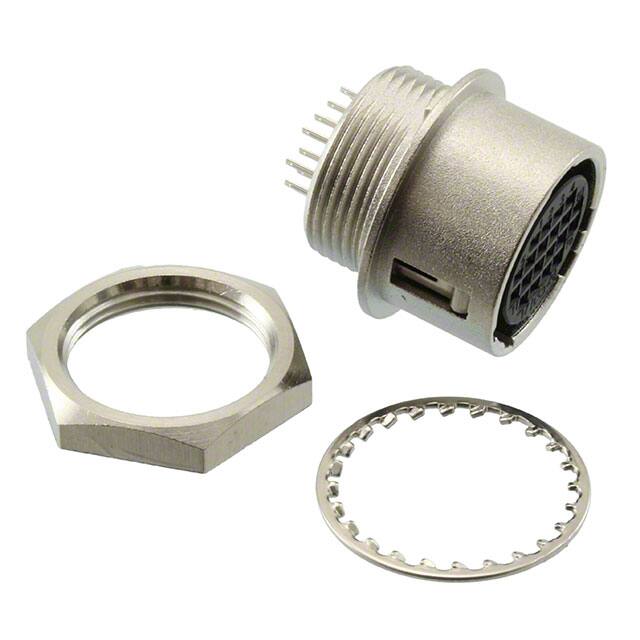

HR10G-13R-20SB(73)

Specifications

Total Number Of Contacts

20

Nominal Gerilim

100VAC 140VDC

Shell Finish

Nickel

Parça Durumu

Active

Terminal

Solder

Mating Information

MULTIPLE MATING PARTS AVAILABLE

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Akım Değeri

2A

JESD-609 Kodu

e4

Shielding

Shielded

Shell Material

Zinc Alloy

Mil Conformance

NO

Connector Type

Receptacle, Female Sockets

Contact Finish Thickness Mating

78.7μin 2.00μm

Coupling Type

SNAP

Contact Materials

Phosphor Bronze

Empty Shell

NO

Seri

HR10G

Mixed Contacts

NO

Option

GENERAL PURPOSE

Shell Size Insert

13

Mounting Feature

Bulkhead - Rear Side Nut

REACH Uyumluluk Kodu

unknown

Housing Material

Brass

Fabrika Tedarik Süresi

10 Weeks

Filter Feature

NO

Contact Gender

Female

ECCN Kodu

EAR99

Contact Finish Mating

Silver

Montaj Tipi

Panel Mount, Through Hole

Montaj

Bulkhead, Panel, Through Hole

Pozisyon Sayısı

20

Backshell Type

SOLID

Yayın Yılı

1998

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-25°C~85°C

Fastening Type

Push-Pull

Kurşunsuz Kodu

yes

Din Conformance

NO
