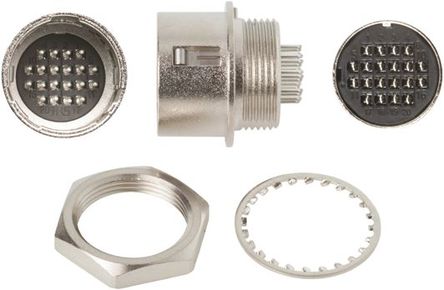

HR10G-13R-20PB(73)

Specifications

Terminal

Solder

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Parça Durumu

Active

Shell Finish

Nickel

Total Number Of Contacts

20

Nominal Gerilim

100VAC 140VDC

Empty Shell

NO

Mil Conformance

NO

Connector Type

Receptacle, Male Pins

Coupling Type

SNAP

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

78.7μin 2.00μm

Shielding

Shielded

Shell Material

Zinc Alloy

Iec Conformance

NO

Akım Değeri

2A

JESD-609 Kodu

e4

ECCN Kodu

EAR99

Contact Gender

Male

Filter Feature

NO

Housing Material

Brass

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks

Shell Size Insert

13

Mounting Feature

Bulkhead - Rear Side Nut

Seri

HR10G

Mixed Contacts

NO

Option

GENERAL PURPOSE

Gender

Female

Din Conformance

NO

Orientation

Keyed

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insert Material

Polybutylene Terephthalate (PBT)

Ambalaj

Tray

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-25°C~85°C

Fastening Type

Push-Pull

Kurşunsuz Kodu

yes

Yayın Yılı

1998
