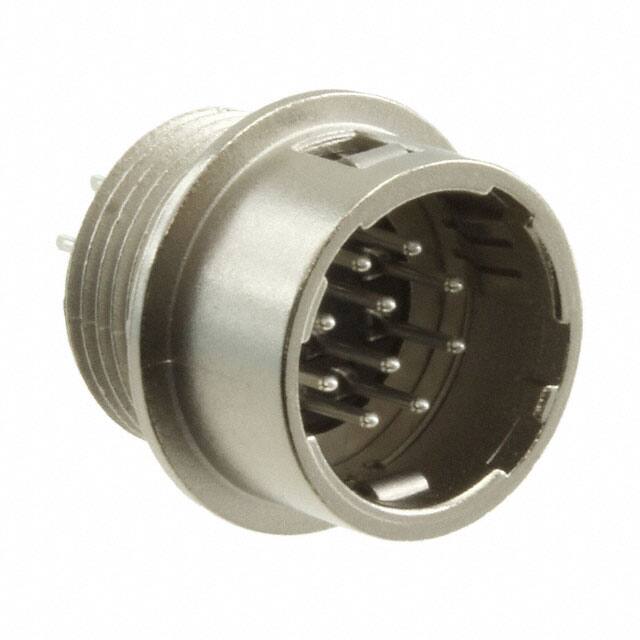

HR10G-10R-10PB(71)

Specifications

Terminal

Solder

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Parça Durumu

Active

Shell Finish

Nickel

Total Number Of Contacts

10

Nominal Gerilim

100VAC 140VDC

Empty Shell

NO

Mil Conformance

NO

Connector Type

Receptacle, Male Pins

Coupling Type

SNAP

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

78.7μin 2.00μm

Shielding

Shielded

Shell Material

Zinc Alloy

Shell Sizes

10

Akım Değeri

2A

Iec Conformance

NO

JESD-609 Kodu

e4

Contact Gender

Male

Filter Feature

NO

REACH Uyumluluk Kodu

unknown

Housing Material

Brass

Fabrika Tedarik Süresi

10 Weeks

Mounting Feature

Bulkhead - Rear Side Nut

Option

GENERAL PURPOSE

Mixed Contacts

NO

Seri

HR10G

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Keyed

Din Conformance

NO

Gender

Female

Insert Material

Polybutylene Terephthalate (PBT)

Ambalaj

Tray

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-25°C~85°C

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull

Yayın Yılı

1998

Backshell Type

SOLID
