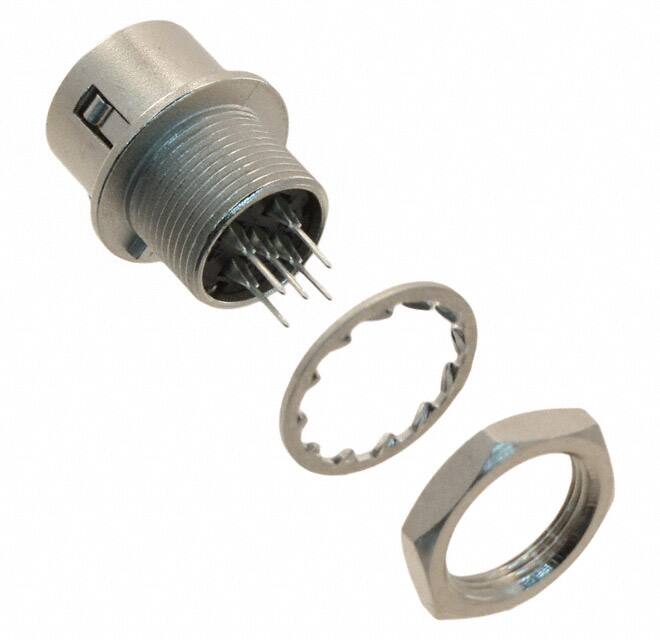

HR10A-7R-5SB(73)

Specifications

ECCN Kodu

EAR99

Contact Gender

Female

Filter Feature

NO

Fabrika Tedarik Süresi

10 Weeks

Additional Feature

POLARIZED

Housing Material

Brass

Radyasyon Dayanımı

No

Shell Size Insert

7

Mounting Feature

Bulkhead - Rear Side Nut

Insulation Materials

Plastic

Seri

HR10A

Mixed Contacts

NO

Option

GENERAL PURPOSE

Kurşunsuz

Lead Free

Insert Material

Polybutylene Terephthalate (PBT)

Ambalaj

Tray

Din Conformance

NO

Orientation

Keyed

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-25°C~85°C

Fastening Type

Push-Pull

Kurşunsuz Kodu

yes

Yayın Yılı

1998

Backshell Type

SOLID

Pozisyon Sayısı

5

Montaj

Bulkhead, Panel, Through Hole

Montaj Tipi

Panel Mount, Through Hole

Contact Finish Mating

Silver

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Terminal

Solder

Parça Durumu

Active

Shell Finish

Nickel

Nominal Gerilim

100VAC 140VDC

Total Number Of Contacts

5

Empty Shell

NO

Coupling Type

SNAP

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

78.7μin 2.00μm
