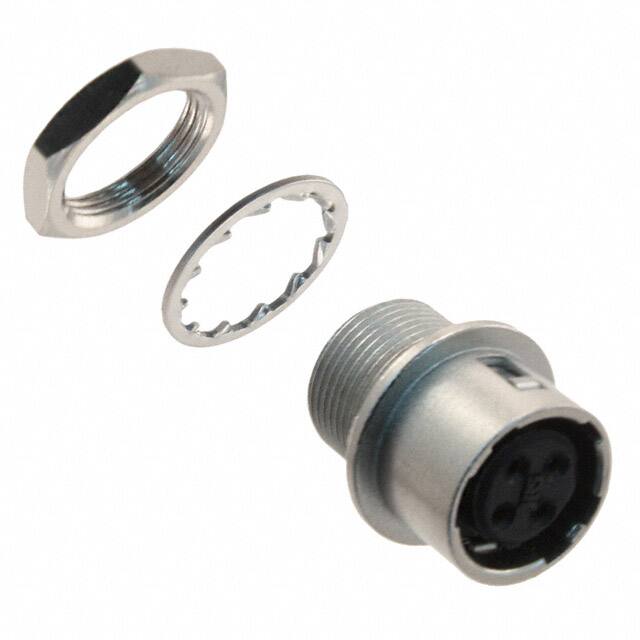

HR10A-7R-4S(73)

Specifications

Parça Durumu

Active

Dielectric Withstanding Voltage

500VAC V

Total Number Of Contacts

4

Nominal Gerilim

150VAC 200VDC

Durability

1000 Cycles

Mil Conformance

NO

Connector Type

Receptacle, Female Sockets

Reliability

COMMERCIAL

Contact Finish Thickness Mating

78.7μin 2.00μm

Empty Shell

NO

Body Material

Brass

Rated Current Signal

2A

Polarization Key

POLARIZED HOUSING

Additional Feature

POLARIZED

Filter Feature

NO

Seri

HR10A

Mounting Feature

Bulkhead - Rear Side Nut

Fastening Type

Push-Pull

Material Flammability Rating

UL94 V-0

Number Of Ports

1

Gender

Receptacle

Din Conformance

NO

Contact Resistance

10mOhm

Ambalaj

Bulk

Kurşunsuz

Lead Free

Contact Finish Mating

Silver

Pozisyon Sayısı

4

Yayın Yılı

1998

Shell Finish

Nickel

Terminal

Solder Cup

Mating Information

MULTIPLE MATING PARTS AVAILABLE

RoHS Durumu

RoHS Compliant

Insulation Resistance

1000000000Ohm

Coupling Type

SNAP

Contact Materials

Phosphor Bronze

Akım Değeri

2A

Iec Conformance

NO

JESD-609 Kodu

e4

Shielding

Unshielded

Shell Material

Zinc Alloy
