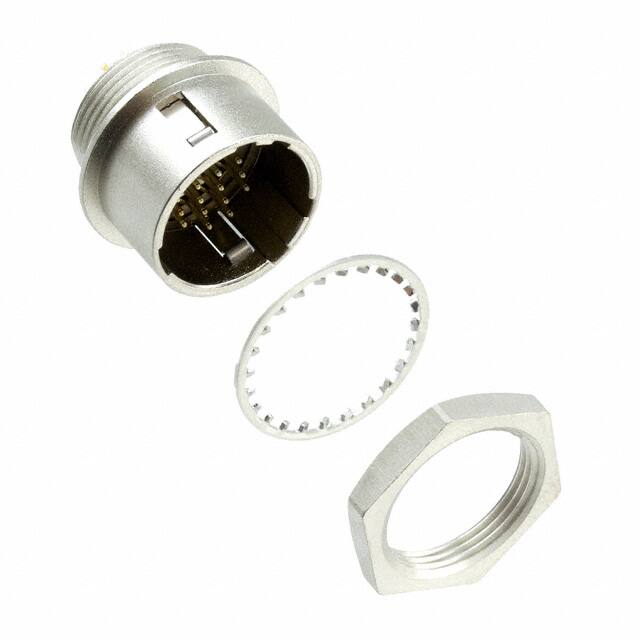

HR10A-13R-20PB(73)

Specifications

JESD-609 Kodu

e4

Akım Değeri

2A

Iec Conformance

NO

Shell Material

Zinc Alloy

Shielding

Unshielded

Contact Finish Thickness Mating

78.7μin 2.00μm

Contact Materials

Phosphor Bronze

Coupling Type

SNAP

Connector Type

Receptacle, Male Pins

Mil Conformance

NO

Empty Shell

NO

Nominal Gerilim

100VAC 140VDC

Total Number Of Contacts

20

Shell Finish

Nickel

Parça Durumu

Active

Mating Information

MULTIPLE MATING PARTS AVAILABLE

RoHS Durumu

RoHS Compliant

Terminal

Solder

Montaj

Bulkhead, Panel, Through Hole

Pozisyon Sayısı

20

Contact Finish Mating

Silver

Montaj Tipi

Panel Mount, Through Hole

Backshell Type

SOLID

Yayın Yılı

1998

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-25°C~85°C

Fastening Type

Push-Pull

Kurşunsuz Kodu

yes

Ambalaj

Tray

Kurşunsuz

Lead Free

Insert Material

Polybutylene Terephthalate (PBT)

Din Conformance

NO

Orientation

Keyed

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Plastic

Option

GENERAL PURPOSE

Mixed Contacts

NO

Seri

HR10A

Mounting Feature

Bulkhead - Rear Side Nut

Shell Size Insert

13
