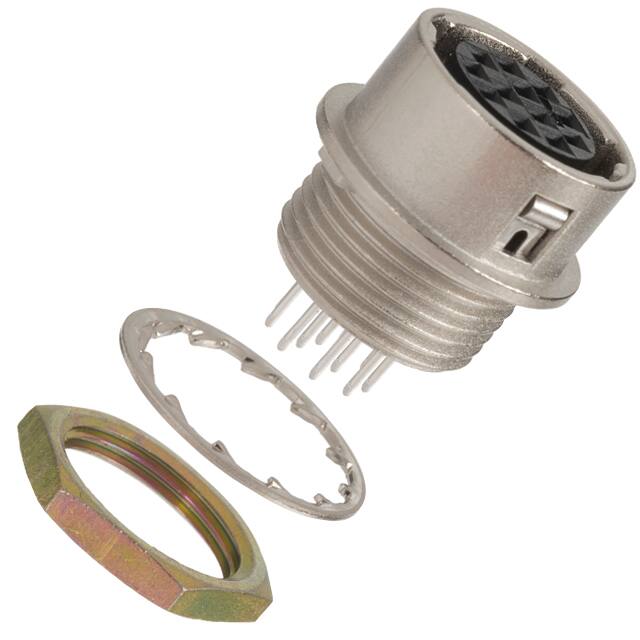

HR10A-10R-12SB(71)

Specifications

Nominal Gerilim

100VAC 140VDC

Total Number Of Contacts

12

Parça Durumu

Active

Contact Finish Thickness Mating

78.7μin 2.00μm

Mil Conformance

NO

Connector Type

Receptacle, Female Sockets

Body Material

Brass

Empty Shell

NO

Seri

HR10A

Mounting Feature

Bulkhead - Rear Side Nut

Additional Feature

POLARIZED

Filter Feature

NO

Pozisyon Sayısı

12

Contact Finish Mating

Silver

Yayın Yılı

1998

Fastening Type

Push-Pull

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Ambalaj

Tray

Gender

Receptacle

Din Conformance

NO

Shell Finish

Nickel

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Terminal

Solder

JESD-609 Kodu

e4

Akım Değeri

2A

Iec Conformance

NO

Shell Material

Zinc Alloy

Shielding

Unshielded

Contact Materials

Phosphor Bronze

Coupling Type

SNAP

Mixed Contacts

NO

Insulation Materials

Plastic

Option

GENERAL PURPOSE

Shell Size Insert

10

Radyasyon Dayanımı

No

Reach Svhc

No SVHC

Material

Metal

Fabrika Tedarik Süresi

12 Weeks
