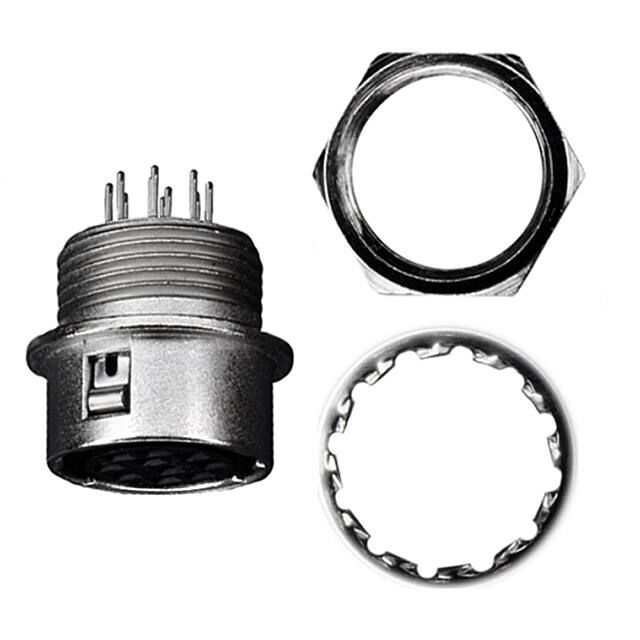

HR10A-10R-10SB(71)

Specifications

Empty Shell

NO

Body Material

Brass

Connector Type

Receptacle, Female Sockets

Mil Conformance

NO

Contact Finish Thickness Mating

78.7μin 2.00μm

Shell Sizes

10

Parça Durumu

Active

Total Number Of Contacts

10

Nominal Gerilim

100VAC 140VDC

Din Conformance

NO

Gender

Receptacle

Kurşunsuz

Lead Free

Ambalaj

Tray

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Yayın Yılı

1998

Contact Finish Mating

Silver

Pozisyon Sayısı

10

Filter Feature

NO

Additional Feature

POLARIZED

Mounting Feature

Bulkhead - Rear Side Nut

Seri

HR10A

Coupling Type

SNAP

Contact Materials

Phosphor Bronze

Shielding

Unshielded

Shell Material

Zinc Alloy

Depth

13mm

Iec Conformance

NO

Akım Değeri

2A

JESD-609 Kodu

e4

Terminal

Solder

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Shell Finish

Nickel

Orientation

Keyed

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insert Material

Polybutylene Terephthalate (PBT)

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-25°C~85°C

Backshell Type

SOLID
