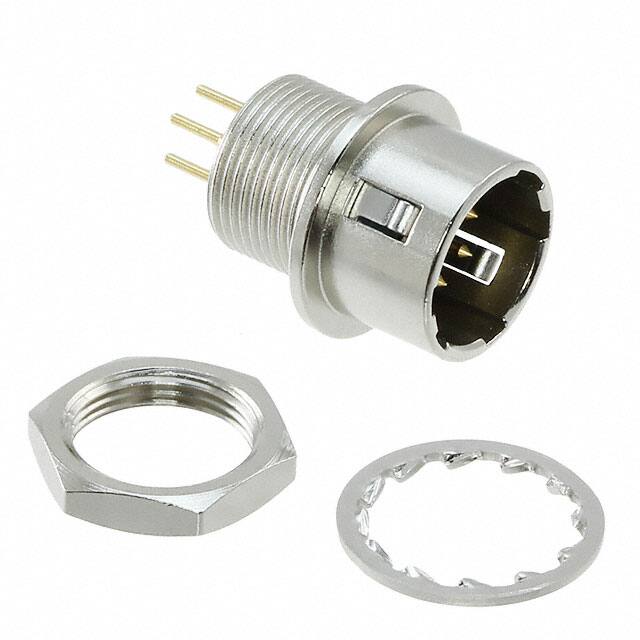

HR10-7R-6PA(73)

Specifications

Total Number Of Contacts

6

Nominal Gerilim

100VAC 140VDC

Parça Durumu

Active

Shell Finish

Nickel

Pin Sayısı

5

Terminal

Solder

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Akım Değeri

2A

Renk

Silver

Iec Conformance

NO

JESD-609 Kodu

e4

Shielding

Unshielded

Shell Material

Zinc Alloy

Mil Conformance

NO

Connector Type

Receptacle, Male Pins

Coupling Type

SNAP

Contact Materials

Brass

Contact Finish Thickness Mating

8.00μin 0.203μm

Empty Shell

NO

Applications

Industrial, Medical

Insulation Materials

Plastic

Seri

HR10

Mixed Contacts

NO

Option

GENERAL PURPOSE

Mounting Feature

Bulkhead - Rear Side Nut

Shell Size Insert

7

REACH Uyumluluk Kodu

unknown

Additional Feature

POLARIZED

Fabrika Tedarik Süresi

12 Weeks

Contact Gender

Male

Filter Feature

NO

Montaj Tipi

Panel Mount, Through Hole

Contact Finish Mating

Gold

Pozisyon Sayısı

6

Montaj

Bulkhead, Panel, Through Hole

Yayın Yılı

1998

Backshell Type

SOLID

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull
