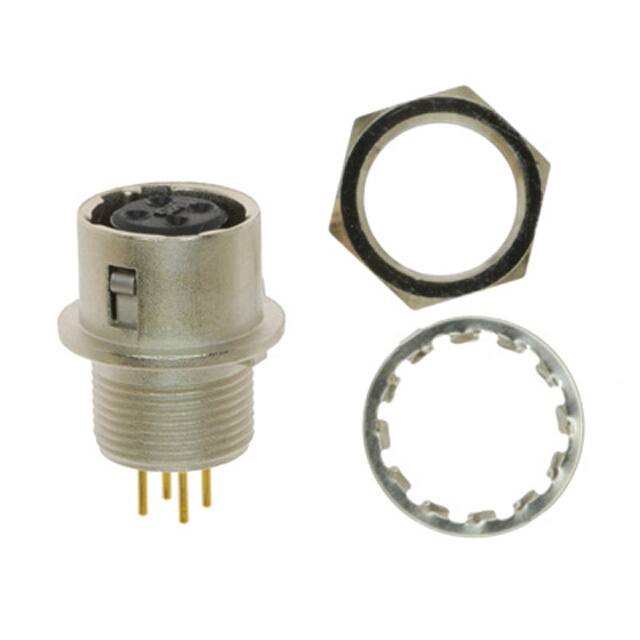

HR10-7R-4SA(73)

Specifications

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull

Çalışma Sıcaklığı

-25°C~85°C

Material Flammability Rating

UL94 V-0

Ambalaj

Tray

Insert Material

Polyamide (PA), Nylon

Kurşunsuz

Lead Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Keyed

Din Conformance

NO

Montaj

Bulkhead, Panel, Through Hole

Pozisyon Sayısı

4

Contact Finish Mating

Gold

Montaj Tipi

Panel Mount, Through Hole

Backshell Type

SOLID

Yayın Yılı

1998

Fabrika Tedarik Süresi

10 Weeks

Housing Material

Brass

Additional Feature

POLARIZED

Filter Feature

NO

Contact Gender

Female

Insulation Materials

Plastic

Seri

HR10

Mixed Contacts

NO

Option

GENERAL PURPOSE

Mounting Feature

Bulkhead - Rear Side Nut

Shell Size Insert

7

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

8.00μin 0.203μm

Coupling Type

SNAP

Contact Materials

Beryllium Copper

Mil Conformance

NO

Connector Type

Receptacle, Female Sockets

Applications

Industrial, Medical

Empty Shell

NO

JESD-609 Kodu

e4

Akım Değeri

2A

Renk

Silver

Iec Conformance

NO

Shell Material

Zinc Alloy
