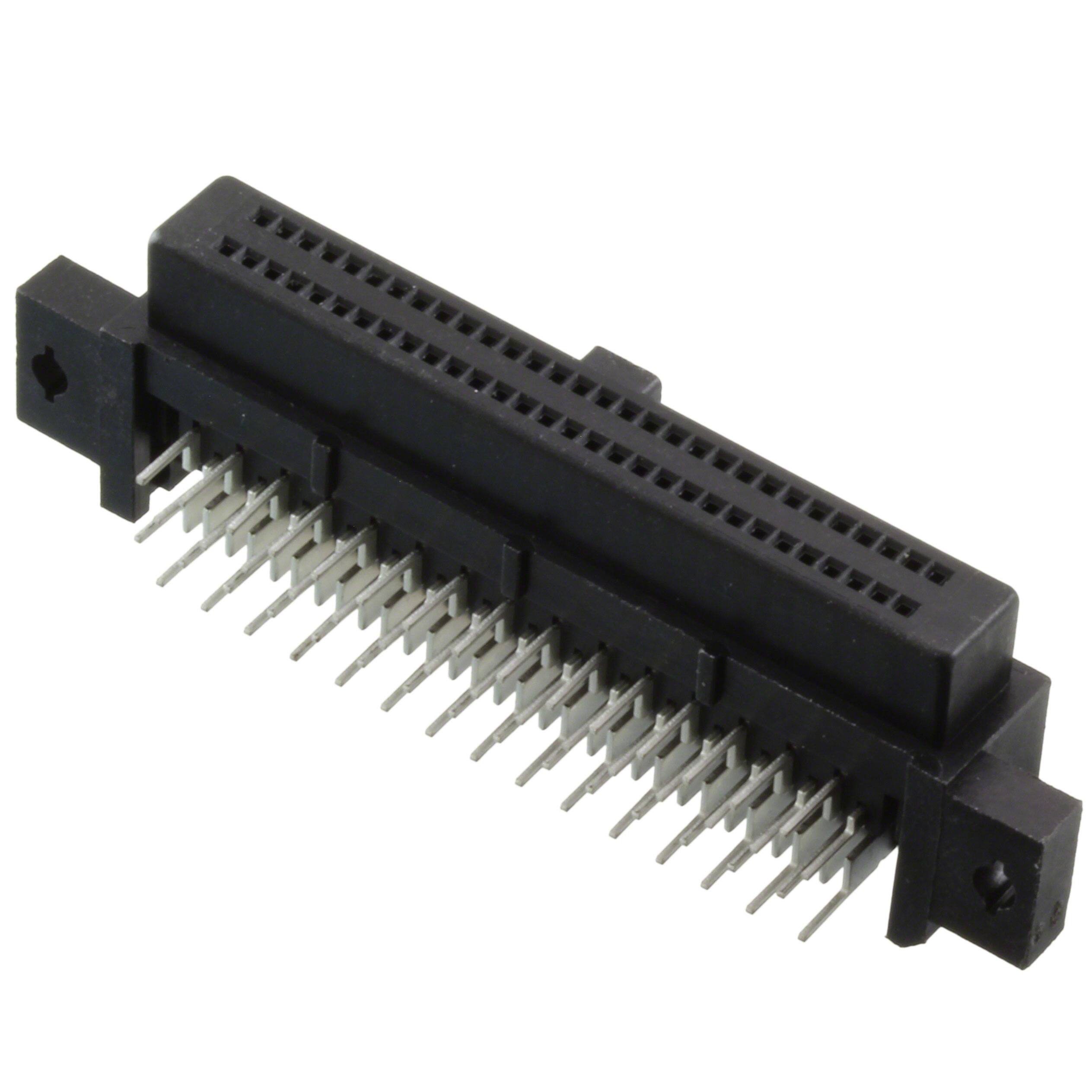

HIF6B-60DA-1.27DS(71)

Specifications

Insulation Materials

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Polarization Key

POLARIZED HOUSING

Connector Type

Receptacle

Contact Resistance

30mOhm

HTS Kodu

8536.69.40.40

RoHS Durumu

RoHS Compliant

Length Termination

0.118 inch

Insulation Resistance

1000000000Ohm

Contact Finish Mating

Gold

Filter Feature

NO

Reference Standard

UL

Ambalaj

Tray

Contact Finish Thickness Mating

8.00μin 0.203μm

Pcb Contact Pattern

STAGGERED

Number Of Pcb Rows

4

Çalışma Sıcaklığı

-55°C~85°C

Contact Shape

Square

Pcb Contact Row Spacing

1.905 mm

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

300VAC V

Mounting Option1

LOCKING

Pitch Mating

0.050 1.27mm

Number Of Positions Loaded

All

Nominal Gerilim

125VAC

Insulation Height

0.335 8.51mm

Insulation Color

Black

Montaj Tipi

Through Hole, Right Angle

Özellikler

Mounting Flange, Polarizing Key

Contact Length Post

0.118 3.00mm

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Contact Type

Female Socket

Pozisyon Sayısı

60

Mating Contact Pitch

0.05 inch

REACH Uyumluluk Kodu

unknown

Style

Board to Board or Cable

Fabrika Tedarik Süresi

10 Weeks

Ul Flammability Code

94V-0
