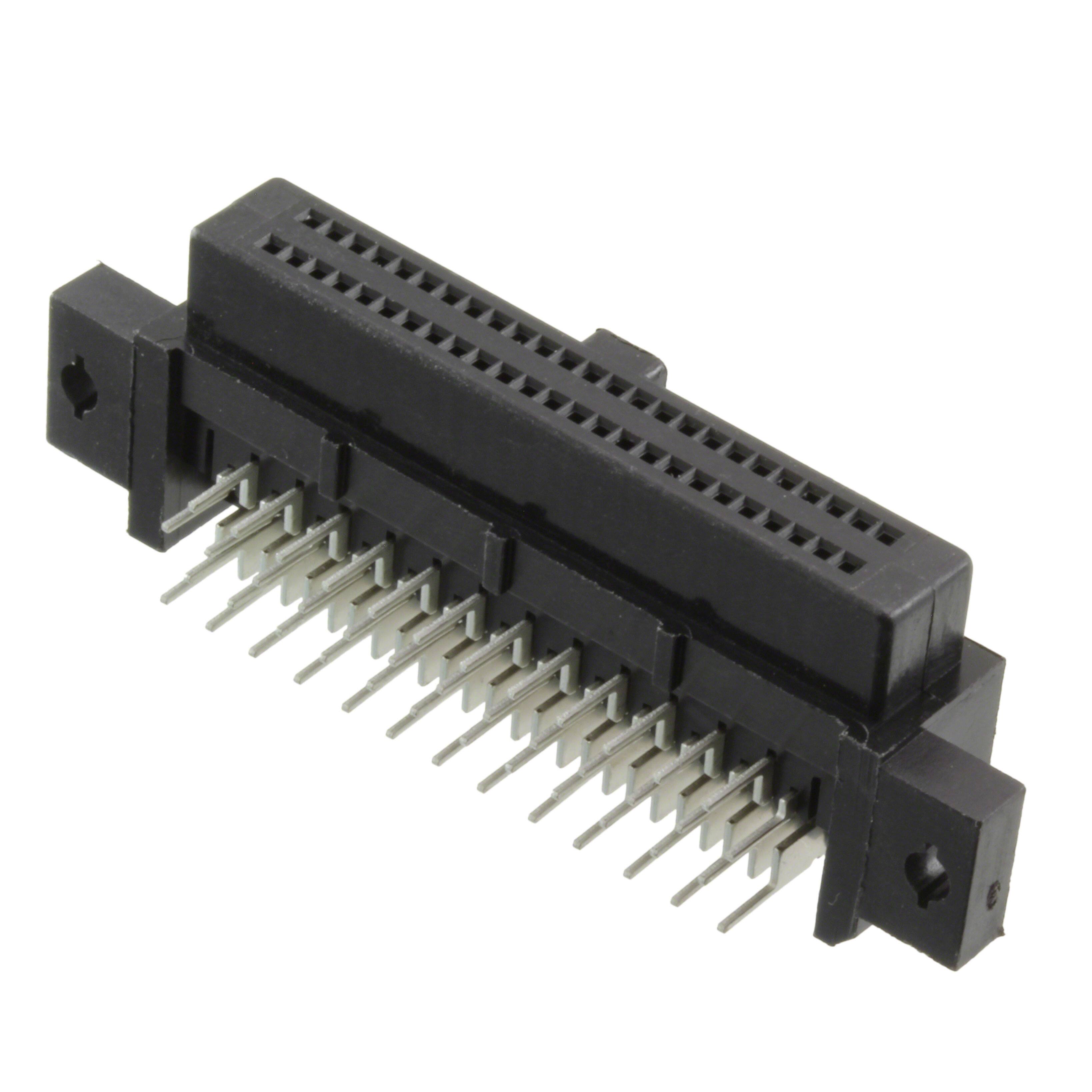

HIF6B-50DA-1.27DS(71)

Specifications

Mating Contact Pitch

0.05 inch

Number Of Positions Loaded

All

Terminal

Solder

Ambalaj

Tray

Mounting Option1

LOCKING

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Fastening Type

Push-Pull

Contact Type

Female Socket

Dielectric Withstanding Voltage

300VAC V

Mixed Contacts

NO

Insulation Materials

Polybutylene Terephthalate (PBT)

Ul Flammability Code

94V-0

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Receptacle

Reliability

COMMERCIAL

Filter Feature

NO

Style

Board to Board or Cable

Akım Değeri

500mA

Pozisyon Sayısı

50

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

8.00μin 0.203μm

Length Termination

0.118 inch

Özellikler

Mounting Flange, Polarizing Key

Parça Durumu

Active

Contact Finish Mating

Gold

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance

30mOhm

Pcb Contact Row Spacing

1.905 mm

Nominal Gerilim

125VAC

Sıra Sayısı

2

Pcb Contact Pattern

STAGGERED

Mil Conformance

NO

REACH Uyumluluk Kodu

unknown

Applications

General Purpose

Reference Standard

UL

Contact Materials

Copper Alloy

Number Of Pcb Rows

4
