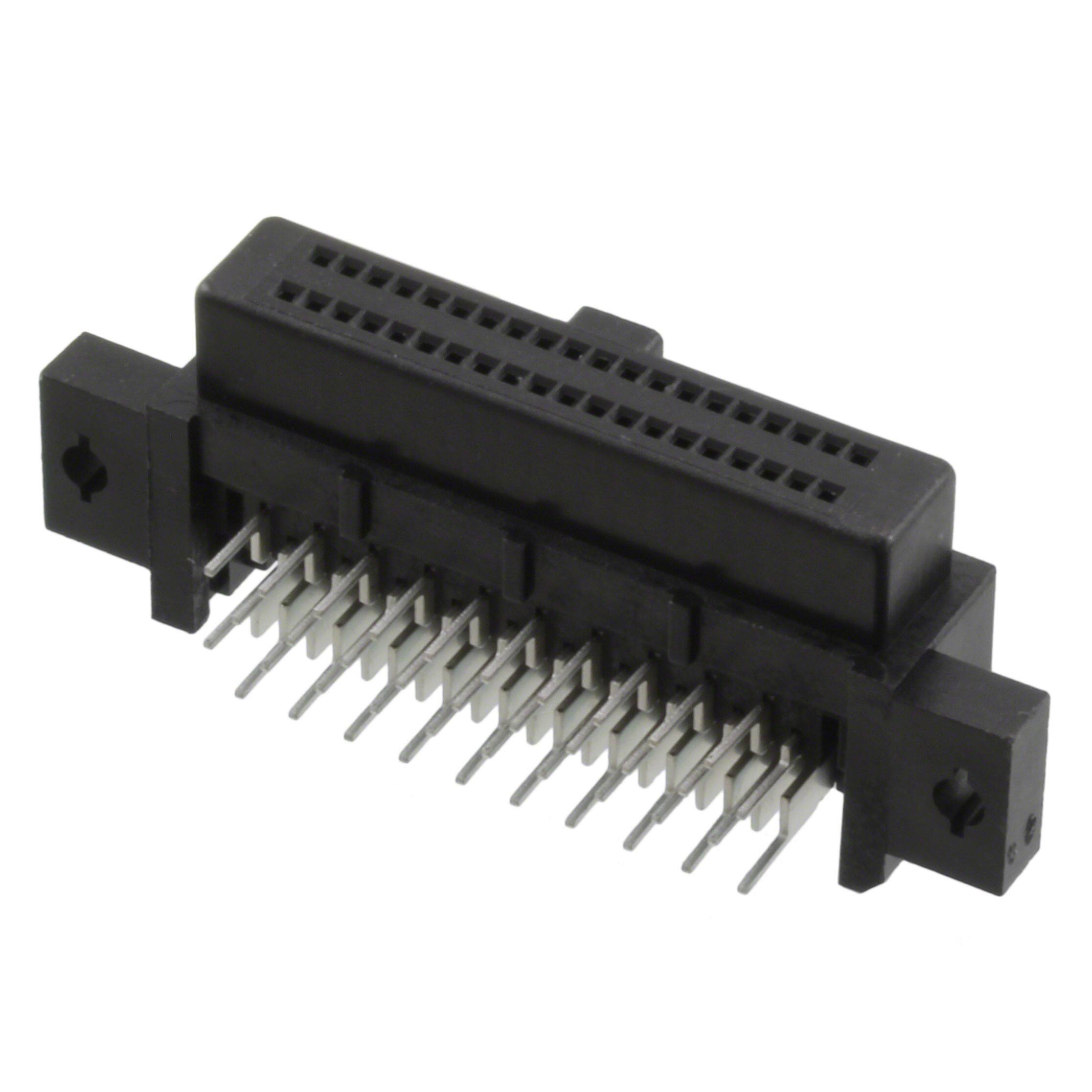

HIF6B-40DA-1.27DS(71)

Specifications

REACH Uyumluluk Kodu

unknown

Contact Materials

Copper Alloy

Reference Standard

UL

Applications

General Purpose

Number Of Pcb Rows

4

Insulation Resistance

1000000000Ohm

Mil Conformance

NO

Pcb Contact Row Spacing

1.905 mm

Nominal Gerilim

125VAC

Sıra Sayısı

2

Pcb Contact Pattern

STAGGERED

Contact Finish Mating

Gold

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance

30mOhm

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.335 8.51mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.050 1.27mm

Montaj Tipi

Through Hole, Right Angle

Contact Length Post

0.118 3.00mm

Current Rating Amps

0.5A

Contact Shape

Square

Insulation Color

Black

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Seri

HIF6

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Contact Type

Female Socket

Dielectric Withstanding Voltage

300VAC V

Mixed Contacts

NO

Insulation Materials

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Ul Flammability Code

94V-0

Ambalaj

Tray

Mounting Option1

LOCKING

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Fastening Type

Push-Pull
