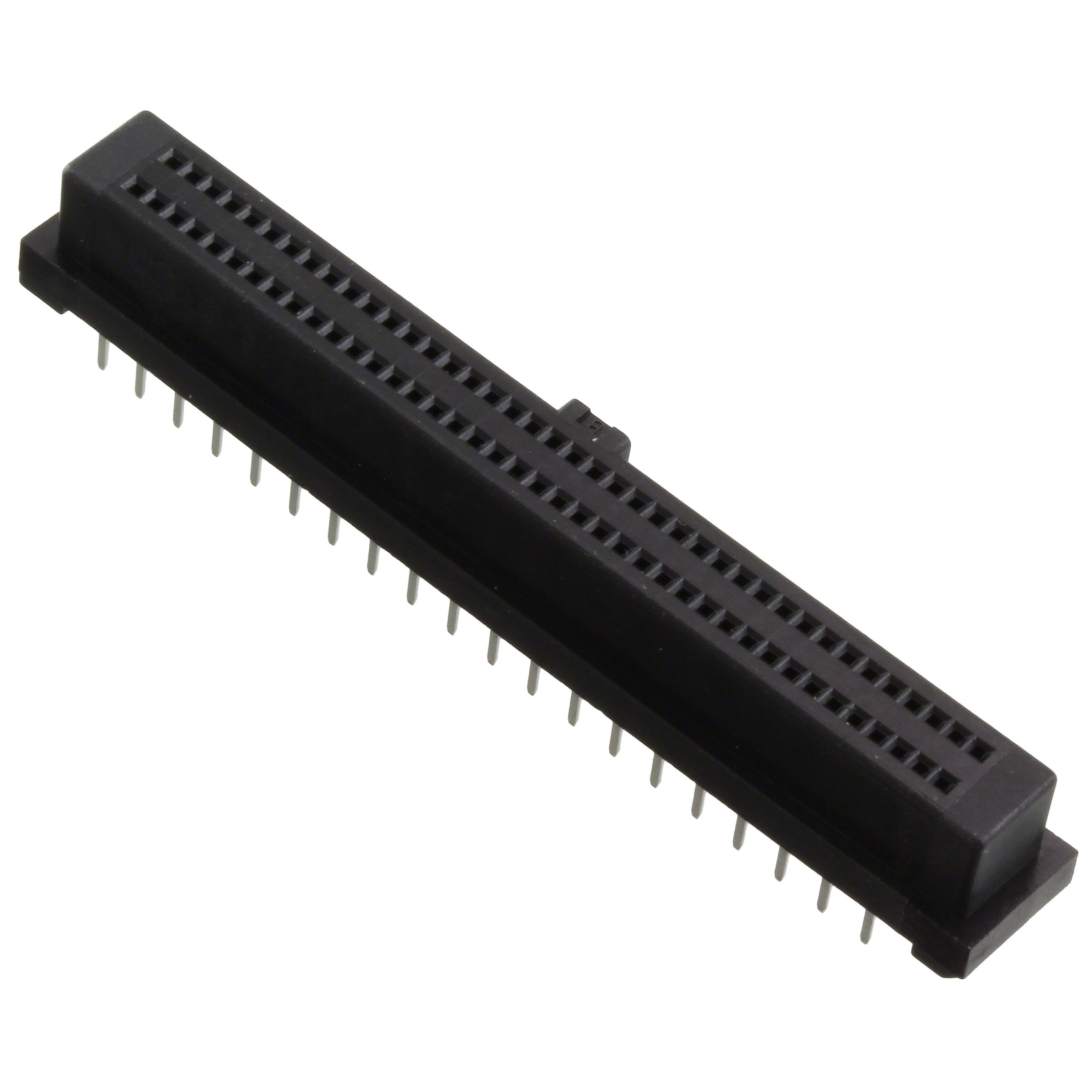

HIF6A-80DA-1.27DS(71)

Specifications

Özellikler

Polarizing Key

Parça Durumu

Active

Length Termination

0.118 inch

Contact Finish Thickness Mating

8.00μin 0.203μm

RoHS Durumu

RoHS Compliant

Style

Board to Board or Cable

Akım Değeri

500mA

Pozisyon Sayısı

80

Reliability

COMMERCIAL

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Receptacle

Material Flammability Rating

UL94 V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Ul Flammability Code

94V-0

Contact Type

Female Socket

Dielectric Withstanding Voltage

300VAC V

Mixed Contacts

NO

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Fastening Type

Push-Pull

Ambalaj

Tray

Kurşunsuz

Lead Free

Terminal

Solder

Mating Contact Pitch

0.05 inch

Number Of Positions Loaded

All

Insulation Height

0.335 8.51mm

Row Spacing Mating

0.100 (2.54mm)

Montaj

Through Hole

Pitch Mating

0.050 1.27mm

Montaj Tipi

Through Hole, Right Angle

Contact Length Post

0.118 3.00mm

Current Rating Amps

0.5A

Contact Shape

Square

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Right Angle

Insulation Color

Black

Number Of Conductors

ONE
