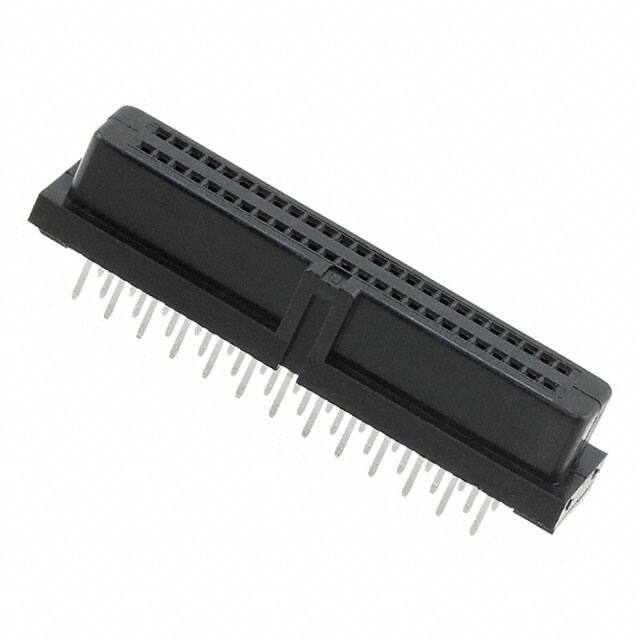

HIF6A-50DA-1.27DS(71)

Specifications

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Seri

HIF6

Orientation

Right Angle

Insulation Color

Black

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole, Right Angle

Pitch Mating

0.050 1.27mm

Contact Length Post

0.118 3.00mm

Current Rating Amps

0.5A

Contact Shape

Square

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.335 8.51mm

Contact Finish Mating

Gold

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance

30mOhm

Pcb Contact Row Spacing

1.905 mm

Nominal Gerilim

125VAC

Sıra Sayısı

2

Pcb Contact Pattern

STAGGERED

Mil Conformance

NO

REACH Uyumluluk Kodu

unknown

Contact Materials

Copper Alloy

Applications

General Purpose

Reference Standard

UL

Number Of Pcb Rows

4

Insulation Resistance

1000000000Ohm

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Receptacle

Reliability

COMMERCIAL

Filter Feature

NO

Style

Board to Board or Cable

Akım Değeri

500mA

Pozisyon Sayısı

50

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

8.00μin 0.203μm

Length Termination

0.118 inch

Özellikler

Polarizing Key
